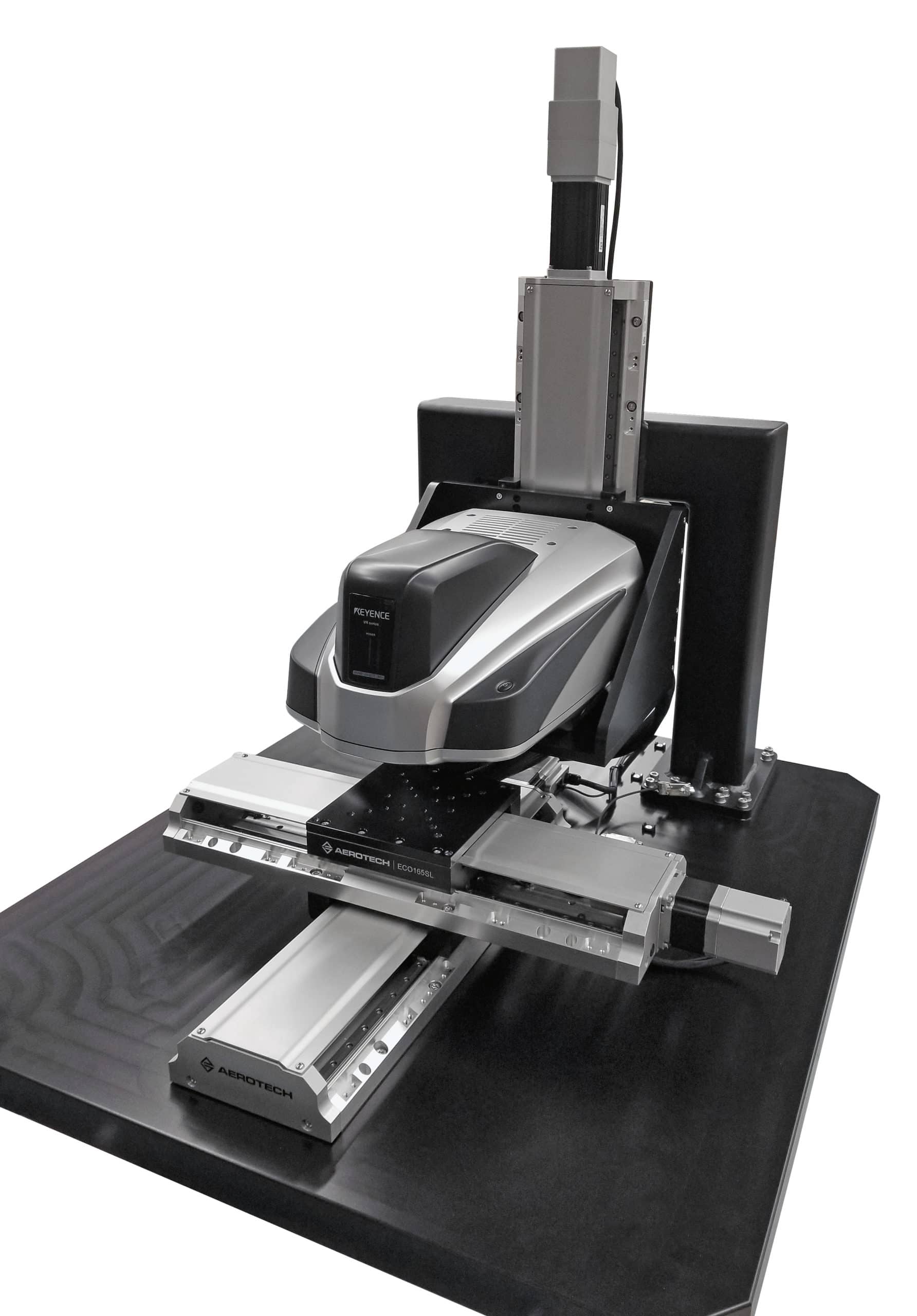

Microscopy and Optical Profiling Platforms

Description

Design Features

• Built to accept a variety of measurement heads
• Configured with larger travels to unlock more measurable surface volume
• Designed with industrial positioning stages that increase payload capacity without sacrificing measurement accuracy
• Thoughtfully selected vibration isolation bases and sturdy frames allow for machine placement in a variety of manufacturing environments
• Pre-configured standard options that solve most measurement needs
• Custom designs to solve a unique measurement application available upon request
• Designed to interface with automation software that saves your operators time and improves measurement process robustness

Options

• Standard off-the-shelf tools or custom purpose-built platforms

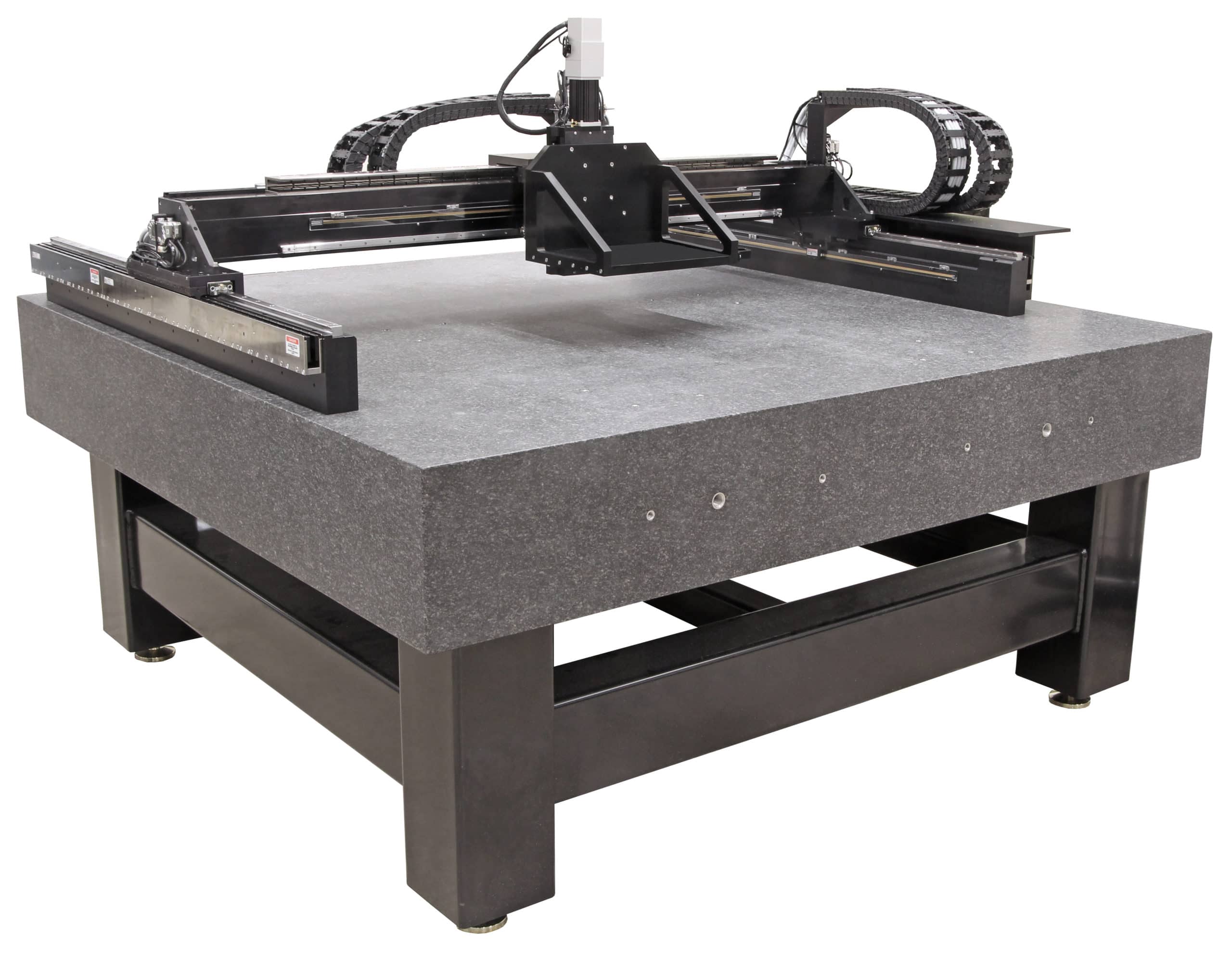

• Standard XY motorized travels of 300x300 millimeters and 600x600 millimeters; Custom travels up to 2 meters
• Standard part payload capacities of up to 45kg; Custom payload capacities up to 500kg

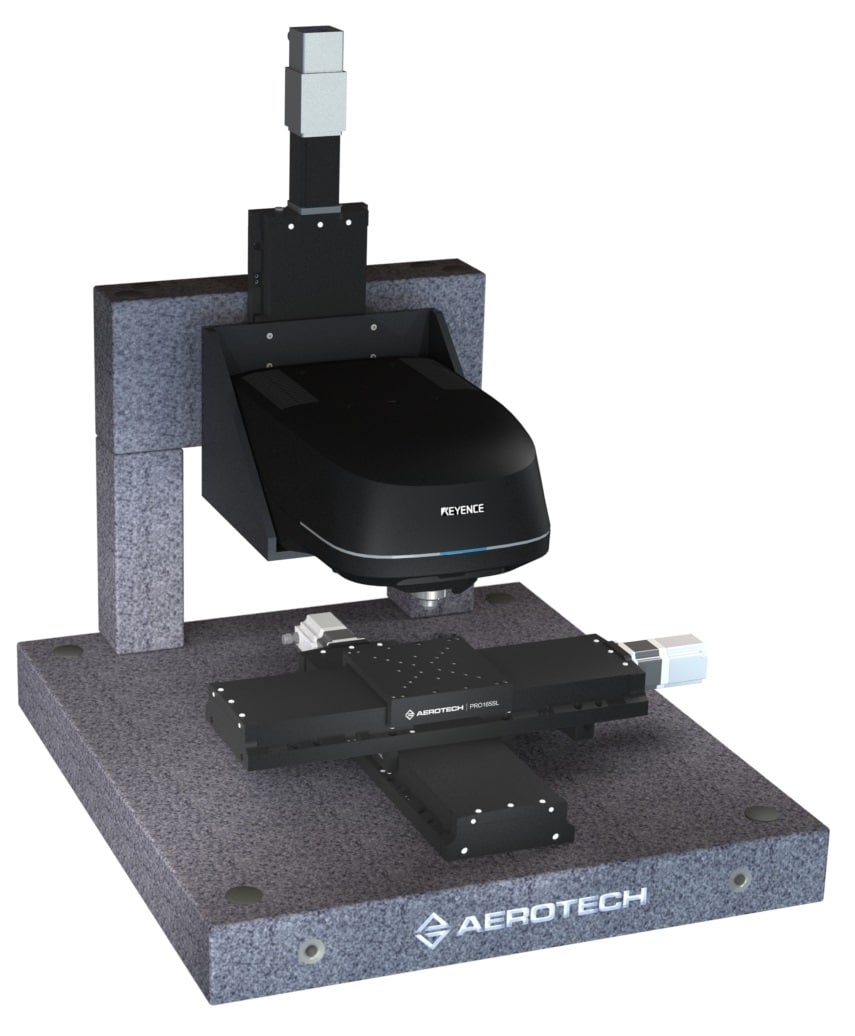

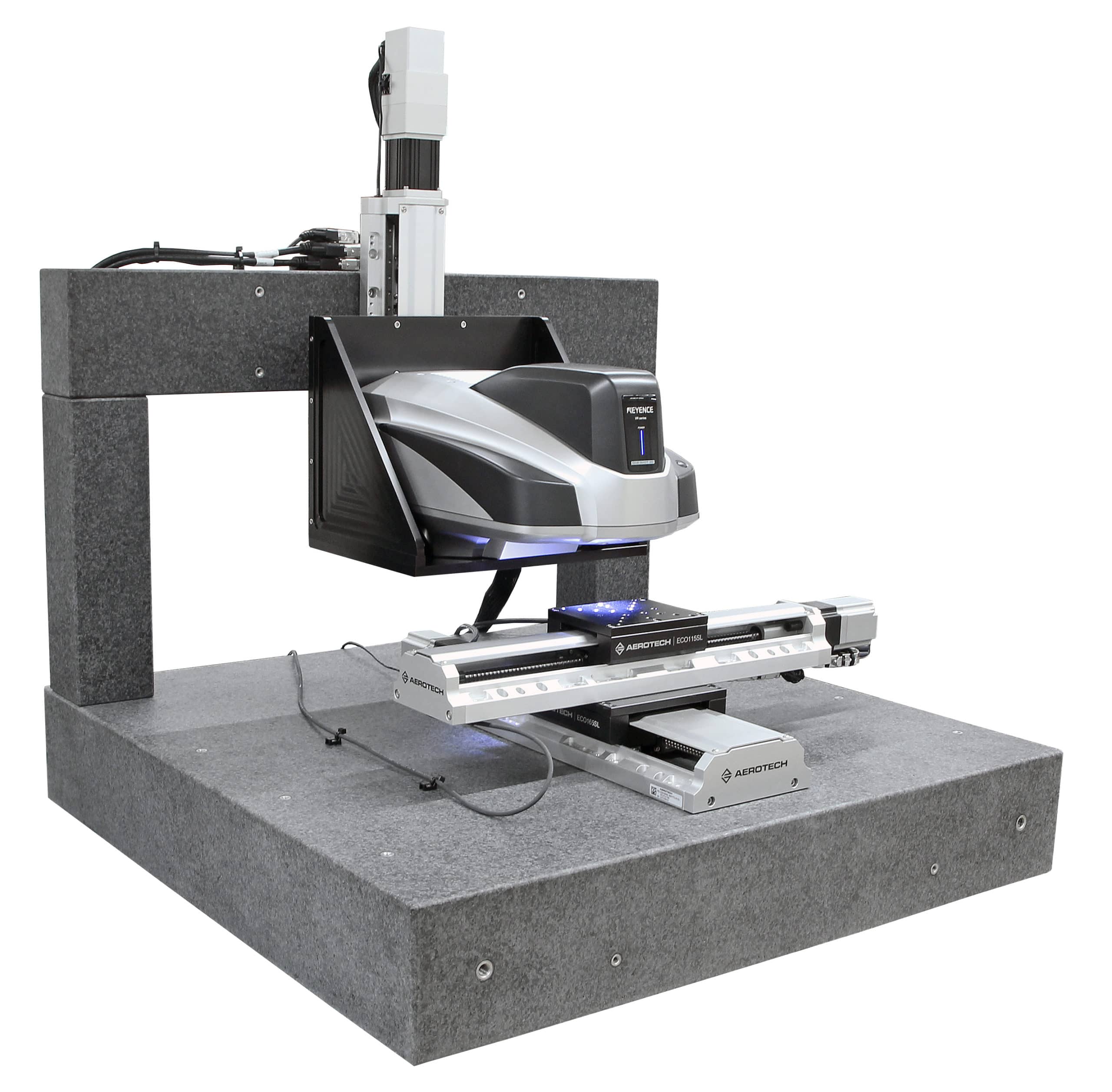

• Aluminum or granite base and bridge assemblies
• Optional coarse Z focus axes; Manual or motorized with a joystick
• Optional steel table (weldment) and isolation systems
• Optional clean room preparation

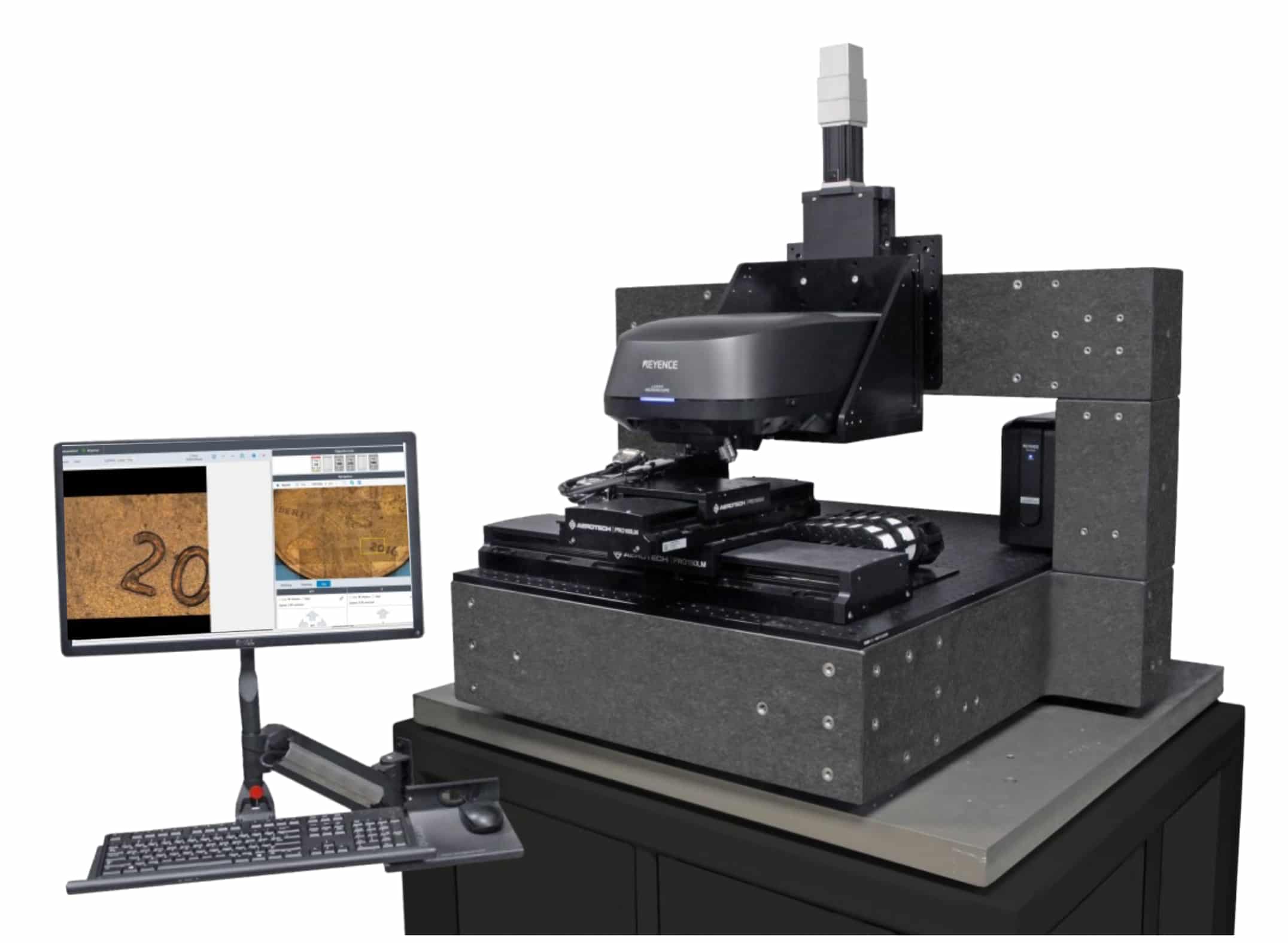

• Optional software user interface to enhance existing measurement head software
• Optional machine safety enclosures, emergency stop buttons, and certifications
• Customizations to all of the above options and more available upon request

To see these tools in action check out our video on standard tools that we carry or this application video showing a full wafer being measured.
