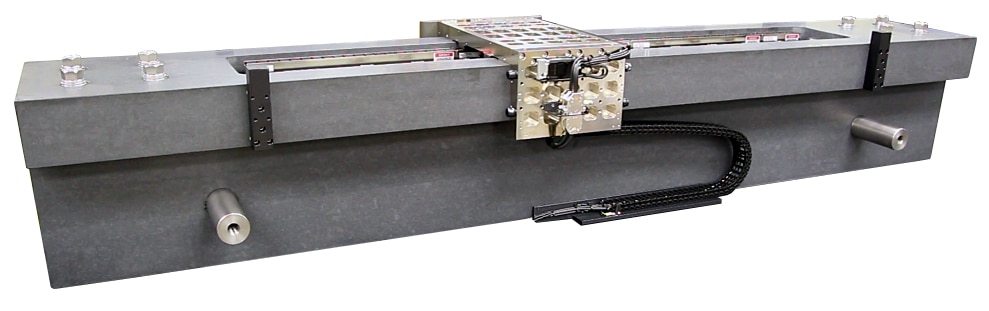

Single-Axis SS Air Bearing IGM System
tainless-steel carriage and linear air-bearing provides long travel and exceptional accuracy, repeatability, straightness, flatness, roll, pitch and yaw performance for testing, optical metrology, motion simulation and laser processing applications. The granite base provides excellent stiffness and thermal stability.
Description
Specifications
Downloads
Description
Description
Specifications
Downloads
Description
Design Features
- Granite stage, stainless-steel carriage
- Excellent thermal stability

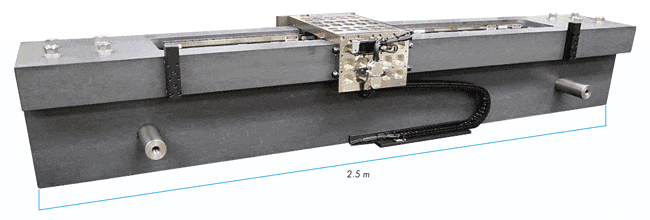

- 1.0+ m travel (1.2 m travel shown)
- 1.5 m/s velocity, 1.5 g acceleration with 5 kg load
- ±3 arc-sec angular errors over travel
- ±1 µm accuracy calibrated, ±0.6 µm repeatability
- 50 kg load capacity
