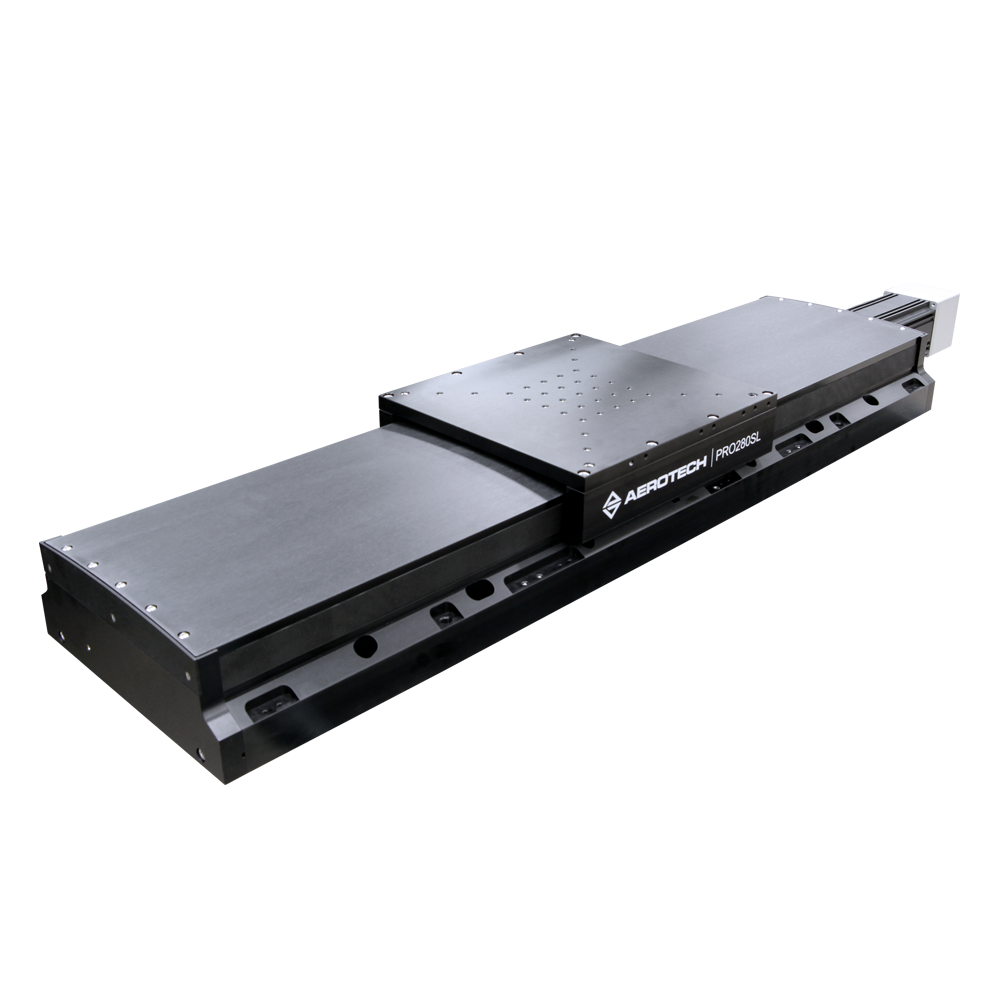

PRO280SL Mechanical Bearing, Ball-Screw Stage

The PRO280SL is a heavy-duty industrial stage with an exceptional payload-carrying capacity. Compared to PRO225SL, PRO280SL provides up to 50% greater payload capacity, and its wider bearing separation further minimizes geometric errors. Combining superior craftsmanship with the highest quality components, PRO280SL stages consistently and reliably deliver best-in-class positioning performance. Thoughtfully engineered features and options, coupled with competitive pricing, make PRO280SL stages the ideal choice for streamlined integration into a wide variety of precision systems, machines and processes.

Have questions? Contact an Aerotech expert.

Description

Specifications

Dimensions

Ordering Info

Downloads

Description

Specifications

Dimensions

Ordering Info

Downloads

Description

Design Features

Offers ultra heavy-duty load capacity & high stiffness
Best-in-class geometric performance ensures superior workpoint accuracy
Excellent motion & positioning performance in a cost-effective package
Rugged, reliable construction is ideal for versatile industrial use
Hardcover & side seals offer protection against contamination & particulates
Vacuum- & cleanroom-compatible versions available

Key Applications

PRO280SL mechanical bearing, ball-screw stages are extremely versatile, trusted and proven in medium- and high-performance applications, such as:

Laser material processing
Precision metrology, inspection & microscopy
Electronics & circuit board manufacturing & inspection
Display processing
Synchrotron & light source experiments
Medical device manufacturing
Semiconductor fabrication
Fiber optics & silicon photonics processing
Additive manufacturing & precision assembly

Rugged & Reliable Mechanical Construction

A long-life recirculating linear guide bearing system, a precision-ground ball screw and a low-friction sealing solution make the PRO280SL an attractive choice for industrial applications such as laser machining, precision metrology, and electronics manufacturing and inspection. The PRO280SL’s durable construction provides protection from debris while the side seals prevent particulate matter from entering the stage. The curved hardcover design provides a natural shape that prevents excessive contamination from collecting on the stage. Capable of accommodating an ample payload range, PRO280SL stages are easy and intuitive to integrate, set up and operate. They also deliver an exceptionally long lifetime of consistent positioning performance.

Design & Integration Flexibility

The PRO280SL is designed with many standard features and options that make it incredibly flexible and allow it to be easily tailored to your specific application. The base mounting holes are accessible from the outside of the stage, allowing for easy horizontal or vertical mounting to both metric and English optical tables and other interfaces. The stage tabletop comes standard with a metric mounting pattern to accommodate your payload, process equipment or even another axis of motion.

Brushless servo motors are available with a variety of encoder feedback options, providing electrical resolutions ranging from 0.5 µm down to the sub-nm level. For vertical applications, the motor can be equipped with a fail-safe holding brake.

PRO280SL stages can be prepared for use in special environments by request. Contact us to learn about compatibility in vacuum chambers, cleanrooms and more.

Automate with Professional-Grade Motion

Our PRO-series stages are available in many sizes and configurations to accommodate an equally diverse range of user needs and application requirements. In addition to the PRO-SL series of ball-screw stages, we offer PRO-LM direct-drive linear stages, which are equipped with powerful linear motors for smooth, high-dynamic performance. PRO stages are offered in six widths ranging from 115 mm to 560 mm (depending on your application’s space constraints and payload requirements) plus travel lengths ranging from 50 mm to 1000 mm or longer. Also available in a vertical elevator-stage variant, our PRO-SV long-travel lift stages offer heavy-duty lifting capacity and can be easily mounted to PRO-SL and PRO-LM linear stages.

Aerotech PRO-series stages make it easier to build and integrate multi-axis assemblies and motion systems–whether you prefer to do it yourself or leave it to our motion and automation professionals.

PRO280SL Specifications

	PRO280SL-300	PRO280SL-400	PRO280SL-500	PRO280SL-600	PRO280SL-800	PRO280SL-1000
Travel	300	400	500	600	800	1000
Accuracy-SL-Standard(1)	±9.5 µm	±11 µm	±13 µm	±15 µm	±17 µm	±18 µm
Accuracy-SL-Calibrated(1)	±1.5 µm		±2 µm		±2.5 µm	±3 µm
Resolution (Min. Incremental Motion)-SL	0.1 µm(2) ; 1.0 µm (3)
Bidirectional Repeatability-SL(1)	±1 µm
Horizontal Straightness(1)	±3 µm	±4 µm	±5 µm	±6 µm	±7 µm	±8.5 µm
Vertical Straightness(1)	±3 µm	±4 µm	±5 µm	±6 µm	±7 µm	±8.5 µm
Pitch	49 µrad	60 µrad	70 µrad	78 µrad	90 µrad	110 µrad
Roll	49 µrad	60 µrad	70 µrad	78 µrad	90 µrad	110 µrad
Yaw	49 µrad	60 µrad	70 µrad	78 µrad	90 µrad	110 µrad
Maximum Speed(4)	220 mm/s					140 mm/s
Maximum Acceleration(4)	Function of Motor, Amplifier Selection, Payload, and Maximum Axial Load
Load Capacity-Horizontal(5)	150 kg
Load Capacity-Vertical (Axial)(5)	70 kg
Load Capacity-Side(5)	150 kg
Moving Mass (w/Tabletop)-SL	12.3 kg
Stage Mass (No Motor)-SL	39.1 kg	42.5 kg	45.9 kg	49.3 kg	56.1 kg	62.9 kg
Material	Anodized Aluminum
MTBF (Mean Time Between Failure)	20,000 Hours

Notes:

Certified with -PL1/-PL2 option.
Achieved with Aerotech rotary motor with amplified sine encoder."
Achieved with Aerotech rotary motor with 2500 cnts/ rev digital encoder.
Requires the selection of an appropriate amplifier with sufficient voltage and current.
Axis-orientation for on-axis loading is listed.
Specifications are for single-axis systems measured 25 mm above the tabletop. Performance of multi-axis systems is payload and workpoint dependent. Contact factory for multi-axis applications.

PRO280SL Electrical Specifications

	PRO280SL-300	PRO280SL-400	PRO280SL-500	PRO280SL-600	PRO280SL-800	PRO280SL-1000
Drive System	Brushless Rotary Servomotor
Feedback (Rotary Encoder)(1)	Incremental – 1000 lines/rev (1 Vpp) and 2500 lines/rev (TTL)
Maximum Bus Voltage	340 VDC
Limit Switches	5 V, Normally-Closed

Note:

1. Requires the selection of a motor option.

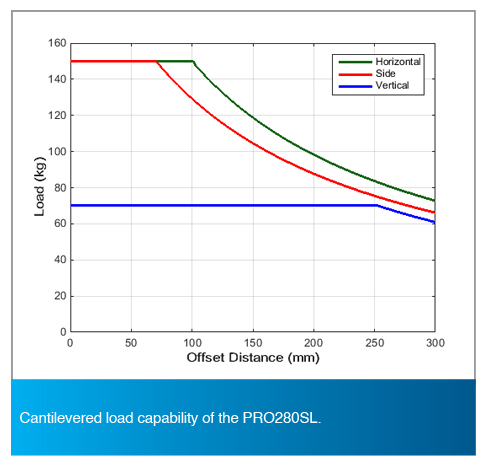

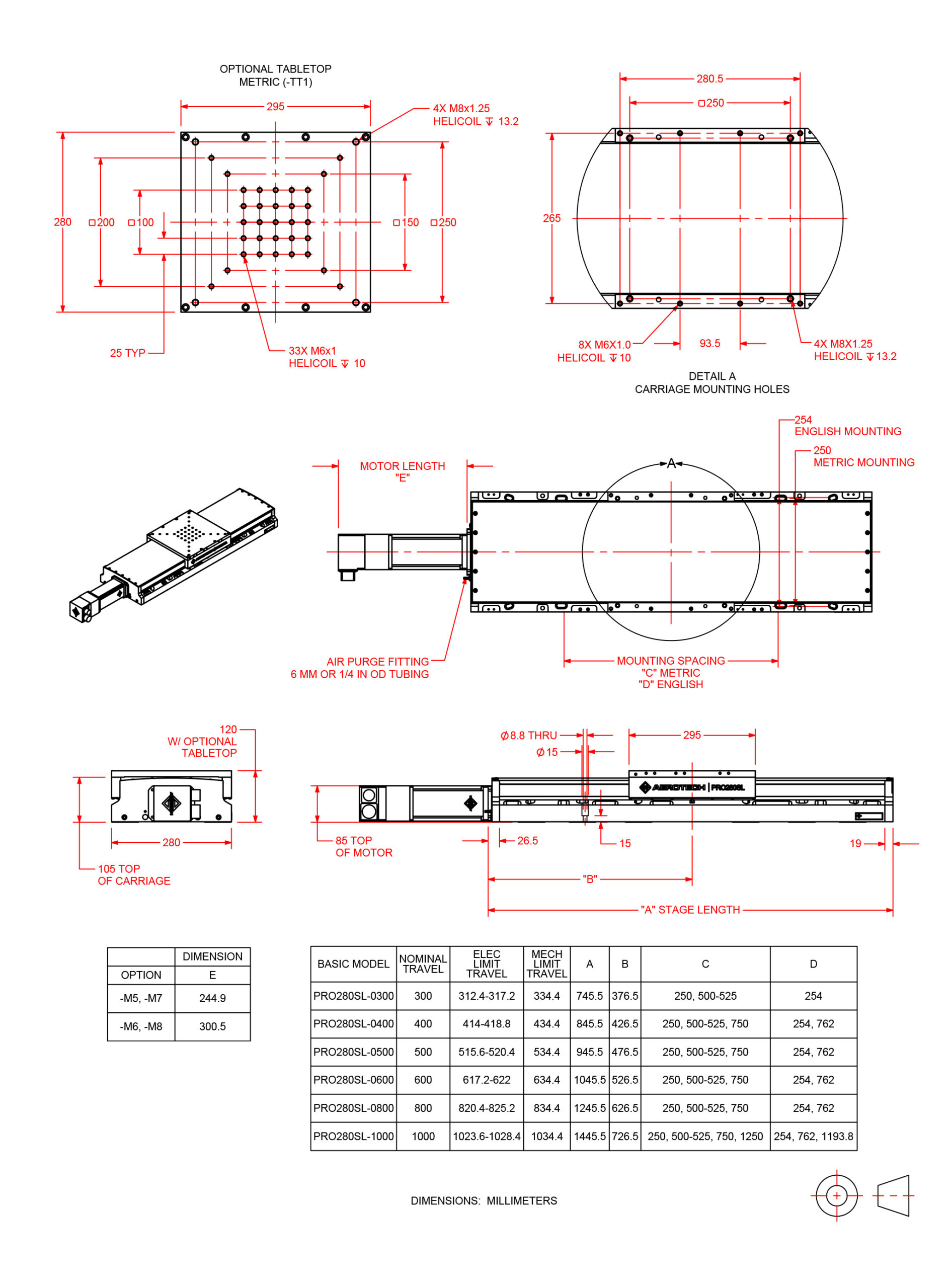

Dimensions

PRO280SL

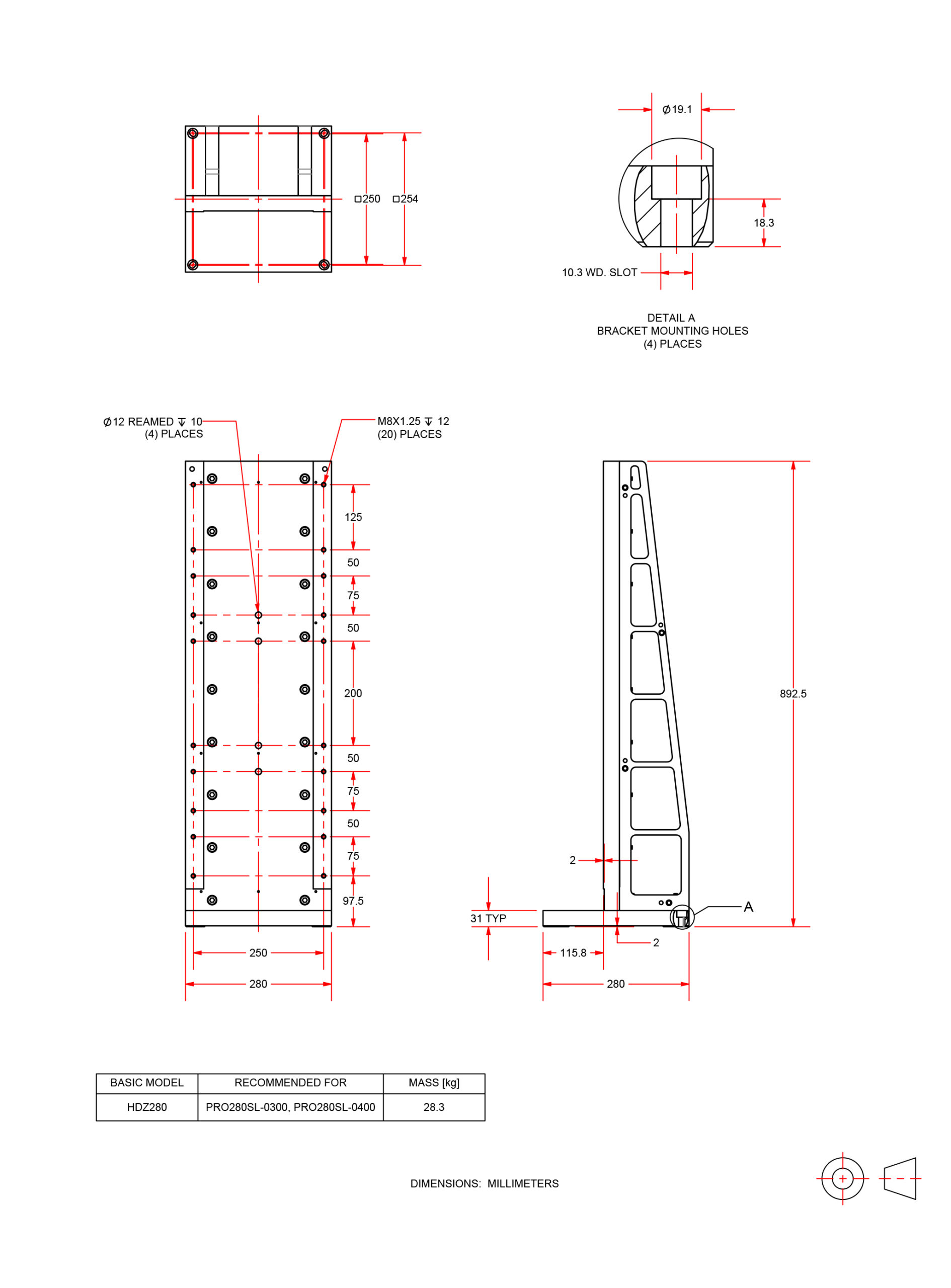

HDZ Bracket

Ordering Information

PRO280SL Series Linear, Ball-Screw Stage

Travel (Required)

Option	Description
-0300	300 mm travel stage
-0400	400 mm travel stage
-0500	500 mm travel stage
-0600	600 mm travel stage
-0800	800 mm travel stage
-1000	1000 mm travel stage

Tabletop (Optional)

Option	Description
-TT1	Tabletop with metric dimension mounting

Note:

Other tabletop options are available upon request. Contact Aerotech for more information.

Motor (Optional)

Option	Description
-M5	BM500 brushless servomotor and 2500-line TTL encoder
-M6	BM500 brushless servomotor, 2500-line TTL encoder, and brake
-M7	BM500 brushless servomotor and 1000-line 1 Vpp encoder
-M8	BM500 brushless servomotor, 1000-line 1 Vpp encoder, and brake

Note:

Other motor options are available upon request. Contact Aerotech for more information

Motor Orientation (Optional)

Option	Description
-2	Bottom cable exit, optional orientation
-3	Left-side cable exit, standard orientation

Note:

Other motor orientation options are available upon request. Contact Aerotech for more information.

Limits (Required)

Option	Description
-LI1	Normally-closed limit switches; 5 VDC with 9-Pin D connector

Note:

Other limit options are available upon request. Contact Aerotech for more information.

Coupling (Optional)

Option	Description
-CP1	Coupling for 0.500 inch diameter shaft

Lifting Hardware (Optional)

Option	Description
-LF	Lifting Hardware

Note:

Lifting option available on all travels. Lifting should never be ordered on the upper-axis of an XY set (only order on lower-axis).

Metrology (Required)

Option	Description
-PL0	No metrology performance plots
-PL1	Metrology, uncalibrated with performance plots
-PL2	Metrology, calibrated (HALAR) with performance plots

Integration (Required)

Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.

Option	Description
-TAS	Integration - Test as system Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration.
-TAC	Integration - Test as components Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system.

Accessories (to be ordered as separate line item)

Option	Description
ALIGNMENT-NPA	Non-precision XY assembly
ALIGN-NPAZ	Non-precision XZ or YZ assembly
ALIGN-PA10	XY assembly; 10 arc sec orthogonality. Alignment to within 7 microns orthogonality for short travel stages.
ALIGN-PA10Z	XZ or YZ assembly with L-bracket; 10 arc second orthogonality. Alignment to within 10 microns orthogonality for short travel stages.
ALIGN-PA5	XY assembly; 5 arc sec orthogonality. Alignment to within 3 microns orthogonality for short travel stages.
ALIGN-PA5Z	XZ or YZ assembly with L-bracket; 5 arc second orthogonality. Alignment to within 5 microns orthogonality for short travel stages.
HDZ280	Right angle L-bracket for PRO280SL/SLE-300 and PRO280SL/SLE-400 only

PRO280SL Data Sheet PRO280SL Product Manual PRO280SL CAD Download
