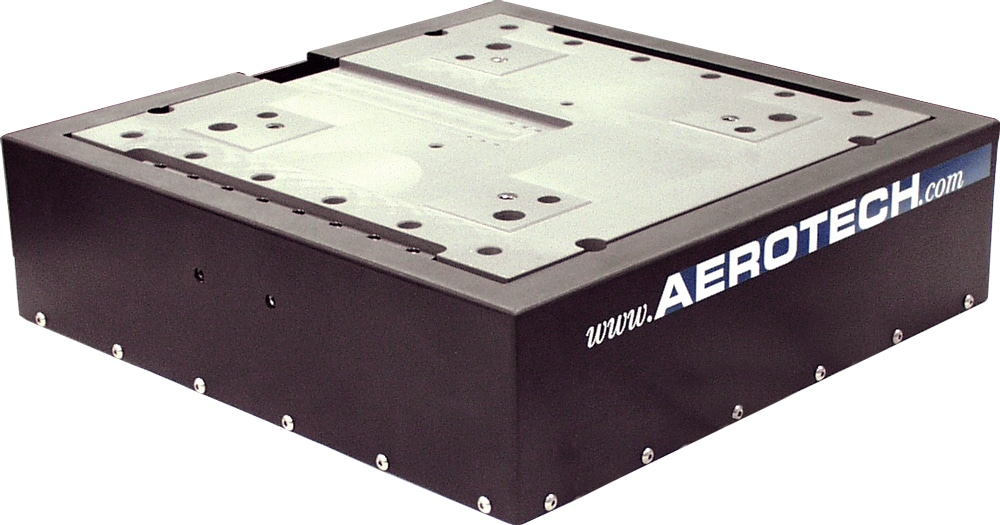

AVL1000 Mechanical-Bearing Direct-Drive Lift Stage
Our AVL1000 represents a significant breakthrough for applications that require Z articulation for large payloads, like flat panel display processing. Multi-axis systems with high load inertia can suffer from mechanical stability problems that limit total machine throughput. The AVL1000’s proprietary design significantly increases stage stiffness to eliminate this problem.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Design Features
- High load-carrying capability
- High stiffness
- Noncontact direct-drive
- High accuracy
- Integral pneumatic counterbalance
- Easily configured with ARA1000 for multi-axis applications
The AVL1000 has a wide footprint that increases stiffness by separating the bearing elements as far as possible. This design also incorporates mechanical elements that fully constrain the carriage and virtually eliminate undesired motion.
Superior Mechanical Design
The AVL1000 utilizes a wedge design mounted on high-stiffness bearings to achieve high lateral and rotational rigidity. All elements of the AVL1000 were selected to operate in a 24/7 industrial environment and, unlike screw-based vertical stages, the AVL1000 requires no maintenance and will ensure years of trouble-free operation.
Brushless Direct-Drive
To maximize positioning performance, the AVL1000 uses Aerotech’s BLM series brushless, slotless linear motor. This motor has all of the advantages of a brushless direct-drive motor — no brushes to wear, no gear trains to maintain and high acceleration and high speeds. The AVL1000 is ideal for high-bandwidth autofocus applications because the motor produces no cogging force.
High Accuracy
Positioning performance is assured by using a precision linear encoder that results in 0.5 nm resolution. The motor and encoder are directly coupled together, increasing the accuracy of the stage by eliminating mechanical hysteresis.
Flexible Configurations
Aerotech also manufactures a wide range of servo amplifiers, advanced controllers, as well as a full line of complementary stage systems to provide a complete, integrated package.

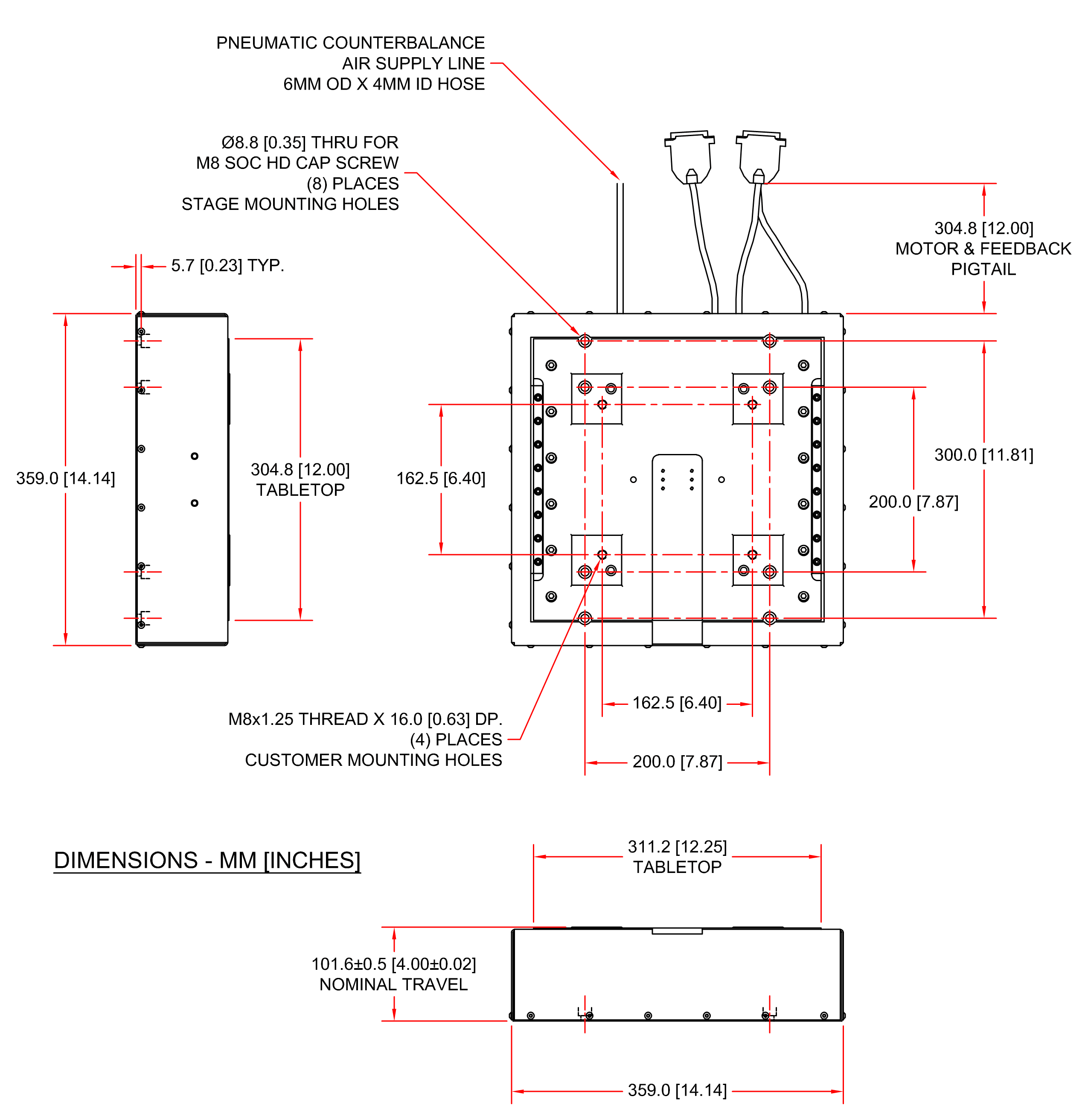

Dimensions
AVL1000
Ordering Information
Travel Options (Required)
| Option | Description |
| -1 | 1 mm travel |
| -2 | 2 mm travel |
Limits (Required)
| Option | Description |
| -LI1 | Normally-closed limit switches |
| -LI2 | Normally-open limit switches |
Metrology (Required)
| Option | Description |
| -PL1 | Metrology, uncalibrated with performance plots |
| -PL2 | Metrology, calibrated (HALAR) with performance plots |
Integration (Required)
Aerotech offers both standard and custom integration services to help you get your system fully operational as quickly as possible. The following standard integration options are available for this system. Please consult Aerotech if you are unsure what level of integration is required, or if you desire custom integration support with your system.
| Option | Description |
| -TAS | Integration - Test as system Testing, integration, and documentation of a group of components as a complete system that will be used together (ex: drive, controller, and stage). This includes parameter file generation, system tuning, and documentation of the system configuration. |
| -TAC | Integration - Test as components Testing and integration of individual items as discrete components that ship together. This is typically used for spare parts, replacement parts, or items that will not be used together. These components may or may not be part of a larger system. |
