Automation1 XI4 Servo Interface
The Automation1 XI4 servo controller brings precision Automation1 servo control to any analog transconductance amplifier. Each XI4 axis of control generates an analog voltage command — required by analog amplifiers to control the output current to a servo motor — and receives encoder and axis feedback signals.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Design Features
- Supports single connector axis interface including analog control output, encoder feedback, 2x EOT limit inputs, marker input, amplifier enable & fault, plus optional absolute encoder support
- Features up to 4 axes of 20 kHz closed-loop servo control
- Features one analog current command per axis
- Includes one axis PSO standard with multi-axis options
- Include 8/8 digital I/O (optically isolated), 1x high speed input & dedicated PSO output
Control Any Amplifier
The Automation1 XI4 servo controller brings precision Automation1 servo control to any analog transconductance amplifier. Each XI4 axis of control generates an analog voltage command -- required by analog amplifiers to control the output current to a servo motor -- and receives encoder and axis feedback signals. The XI4 comes in both 2- and 4- axis configurations, each with an independent 20 kHz servo control loop. For added flexibility, each axis on the XI4 can be configured to output clock and direction control signals.
Automation1
The XI4 is a part of the user-friendly Automation1 motion control platform, which includes the following:
Complete Your Machine Control
Because the XI4 connects over Automation1’s HyperWire® network, the axes it controls can be coordinated with other axes on the network to deliver contoured motion and a single, simple machine control architecture.
Feedback Features
Each axis on the XI4 includes encoder feedback inputs so that you can control axis position very accurately. This input accepts incremental square-wave and absolute (optional) feedback devices.
The dedicated axis feedback signals include encoder feedback (sine +/-, cosine +/- & marker inputs), 2x end of travel (EOT) limit switch inputs and amplifier enable and fault I/O. A dedicated digital I/O port supports 8 digital inputs, 8 digital outputs (sourcing or sinking), 1 differential high-speed input and a dedicated high-speed PSO output.
Platform Power
More than just hardware, the XI4 gives you access to the complete power of the Automation1 motion control platform. This includes the Automation1 motion development kit (MDK), the intelligent software-based controller (iSMC) and the powerful AeroScript™ programming language with integrated RS-274 G and M code support. The Automation1 iSMC can also be programmed by various controller APIs, which provide flexible methods of integrating the XI4 and the axes it controls into your system architecture.
Category |
Specification |
| HyperWire Communication | 2x HyperWire small form-factor pluggable (SFP) ports |
| Control Output (1) | Supports two or four axes of stepper current command (±10 V) or clock & direction control |
| Control Supply | Voltage: 24 VDC Current, 2 Axis Unit: 2 A max, 0.45 A typical Current, 4 Axis Unit: 2 A max, 0.6 A typical |
| User Power Supply Output | 5 VDC |
| Modes of Operation | Open loop Closed loop |
| Protective Features | Output short circuit Control power supply undervoltage |
| Position Synchronized Output (PSO) | Standard: One-axis PSO (includes one-axis part-speed PSO) Optional: Two-axis PSO (includes two-axis part-speed PSO) Three-axis PSO (includes three-axis part-speed PSO) Three-axis part-speed PSO only |
| 25-Pin Axis Connector | Servo current commands/stepper clock & direction output High-speed differential inputs (encoder sin, cos and marker) Absolute encoder interface (support optional) CW and CCW limits 5 VDC power supply Amplifier enable and fault. |
| Multiplier Options | MX0 Option: Primary Encoder: 40 million counts-per-second square-wave input Auxiliary Encoder: 40 million counts-per-second square-wave input MX1 Option: Primary Encoder: 450 kHz sine-wave input, encoder multiplier up to x4,096* Auxiliary Encoder: 40 million counts per second square-wave input *Encoders multiplied with this input cannot be echoed out |
| Digital I/O Connector | 8x optically isolated digital inputs (externally powered, 5-24 VDC) 8x optically isolated digital outputs (externally powered, 5-24 VDC) 1x optically isolated high-speed inputs 1x PSO TTL output 1x 5 VDC power supply |
| Drive Array Memory | 67.1 MB (16,777,216 32-bit elements) |
| High Speed Data Capture | Yes (50 ns latency) |
| Automatic Brake Control | Assignable digital output |
| E-Stop Sense Input | Assignable digital input |
| Absolute Encoder (Optional) | BiSS C Unidirectional; EnDat 2.1; EnDat 2.2 |
| Position Command Update Rate | 20 kHz |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -30 to 85 °C |
| Weight | 0.59 kg (1.30 lb) |
| Compliance | CE approved, Follows EU 2015/863 RoHS 3 directive |
Dimensions
Automation1 XI4-2P1

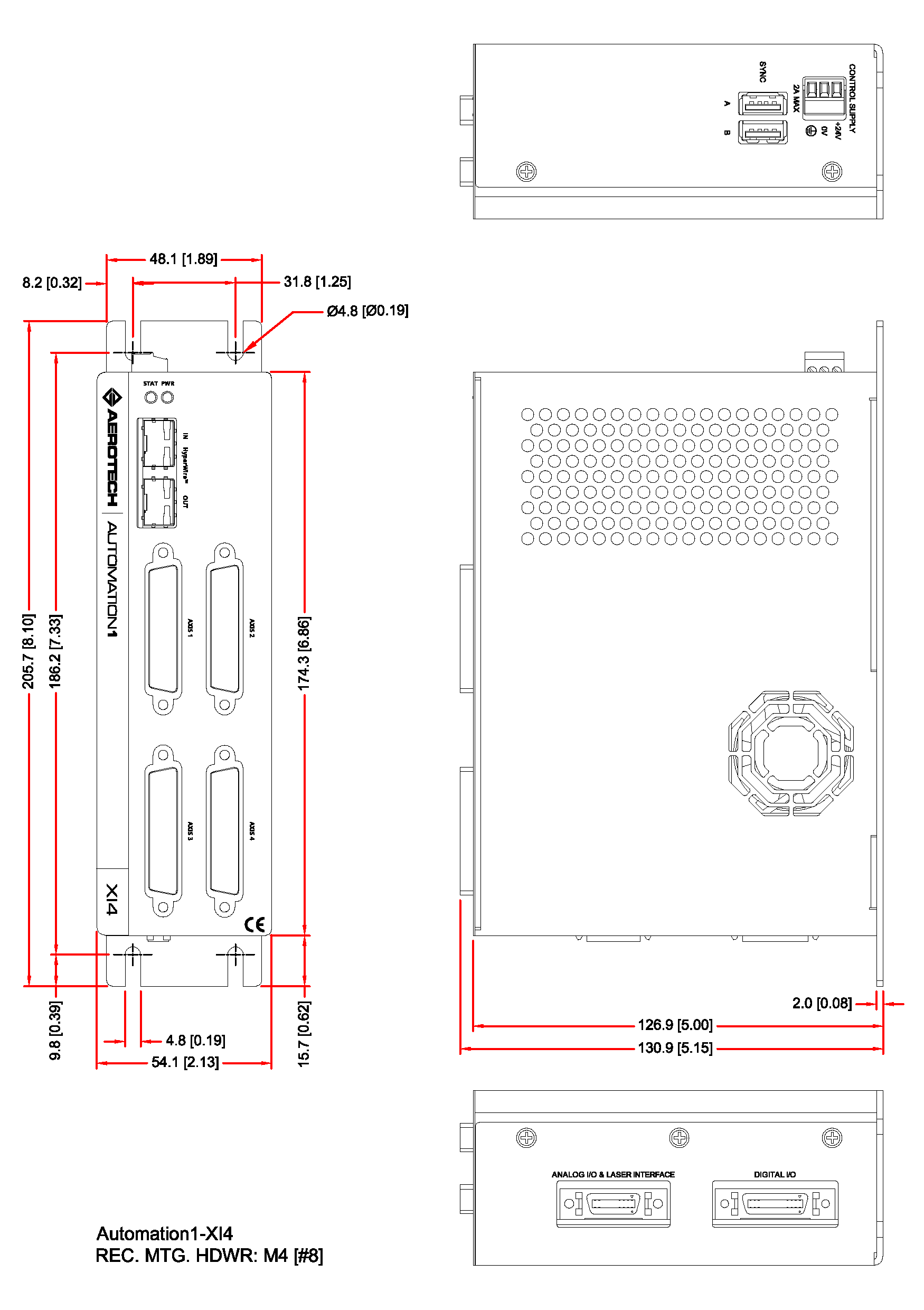

Automation1 XI4-4P1
Automation1 XI4-2P2
Automation1 XI4-4P2
Ordering Information
Automation1 XI4
| Option | Description |
| Automation1 XI4 | Automation1 XI4 Servo Controller |
Configuration
| Option | Description |
| -2P1 | 2 Axes of Control, Standard Packaging |
| -2P2 | 2 Axes of Control, OEM Packaging |
| -4P1 | 4 Axes of Control, Standard Packaging |
| -4P2 | 4 Axes of Control, OEM Packaging |
Multiplier
| Option | Description |
| -MX0 | No Encoder Multiplier (default) |
| -MX1 | x4096 Multiplier (Primary), No Multiplier (Auxiliary) |
Absolute Encoder
| Option | Description |
| -A0 | No Absolute Encoder Support (default) |
| -A1 | Absolute Encoder Support |
PSO
| Option | Description |
| -PSO1 | One-Axis PSO (includes One-axis Part-Speed PSO) (default) |
| -PSO2 | Two-Axis PSO (includes Two-Axis Part-Speed PSO) |
| -PSO3 | Three-Axis PSO (includes Three-Axis Part-Speed PSO) |
| -PSO6 | Three-Axis Part-Speed PSO |
