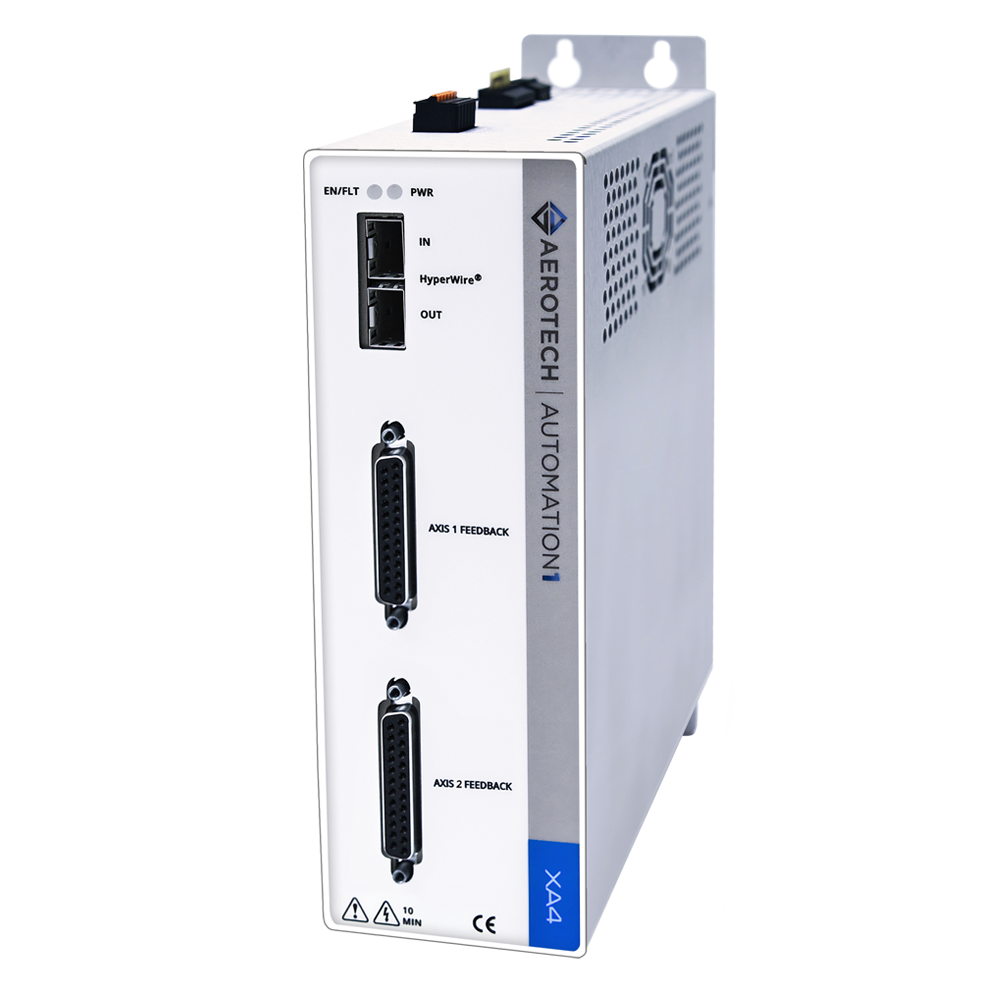

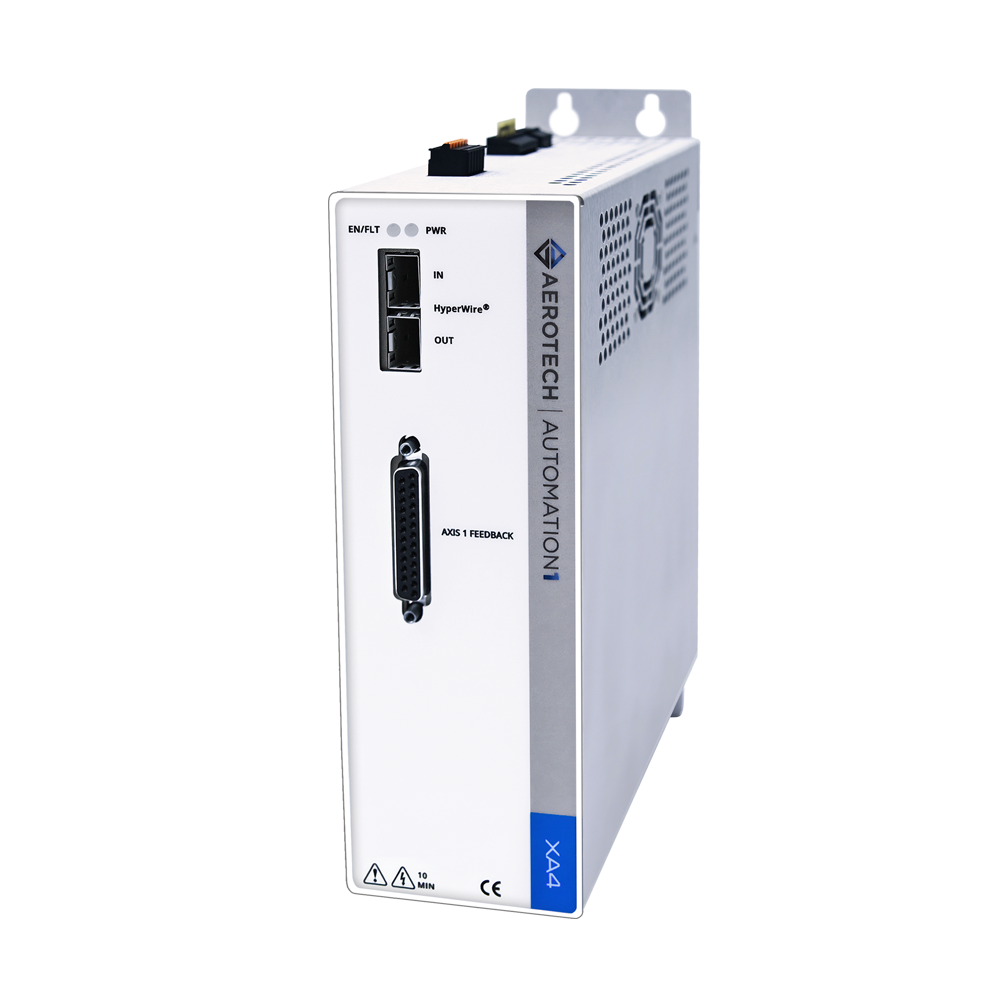

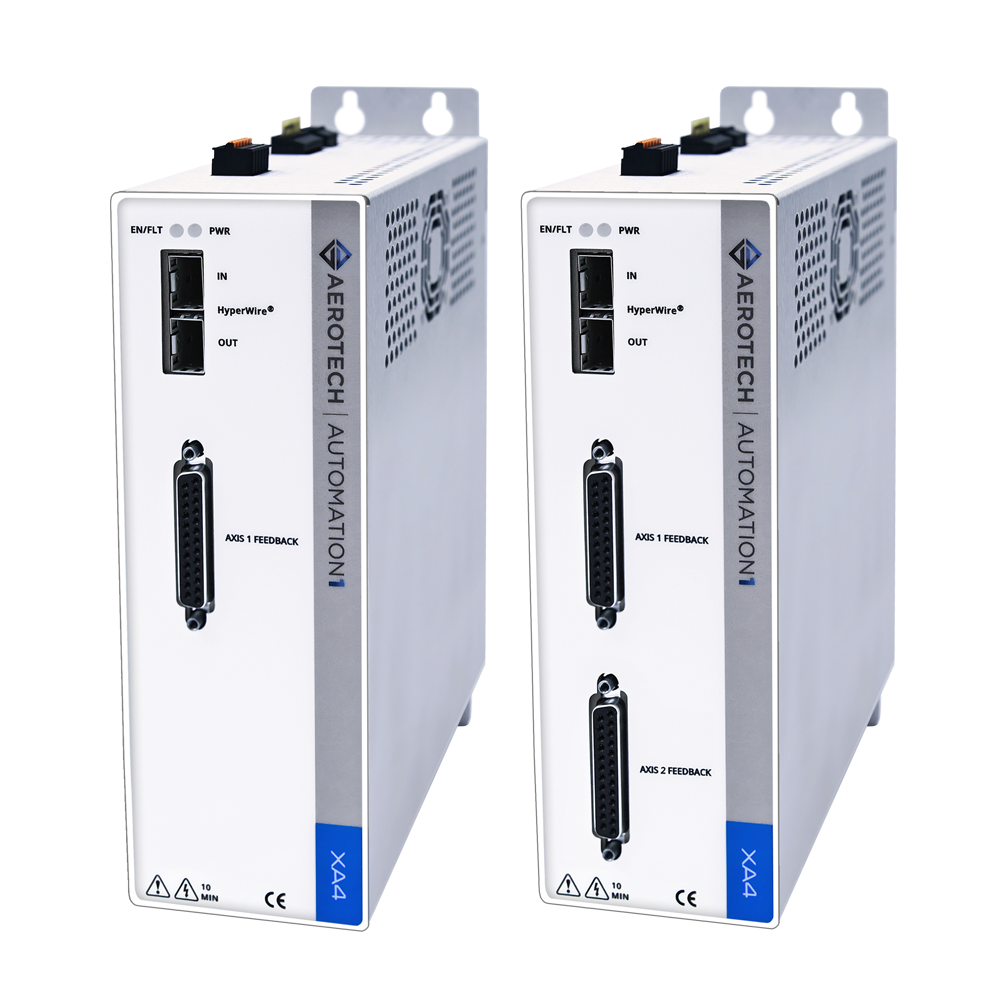

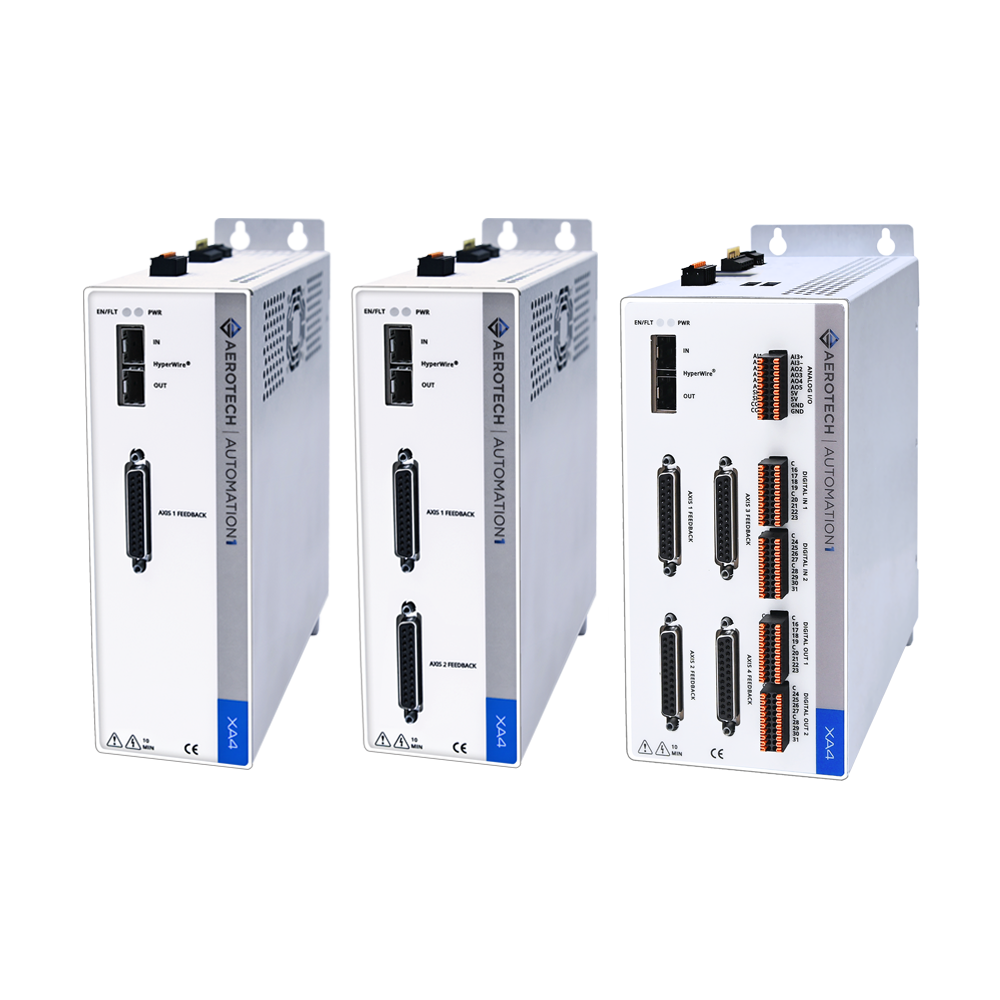

Automation1 XA4 1- 2- or 4-Axis PWM Servo Drive

Add precision motion control to your industrial and research systems with the XA4 1-, 2- or 4-Axis PWM Servo Drive. These streamlined drives enable machine builders to experience Automation1 precision on all of their systems. The XA4 makes the power of the Automation1 motion control platform more accessible than ever, so you can build solutions your customers trust.

The simplified multi-axis XA4 brings precise, powerful control to multiple axes of motion in a smaller machine footprint. Built on the user-friendly Automation1 motion control technology, the XA4 unlocks faster build times and improved quality and throughput. It communicates to Automation1 PC- and drive-based controller products over the HyperWire®  motion bus, supports multiple feedback device types and includes on-board memory. The amplifiers control brushless AC, brush DC, voice coil and stepper motor types at up to 340 VDC operating voltage and 20 A peak current capability.

Have questions? Contact an Aerotech expert.

Description

Specifications

Dimensions

Ordering Info

Downloads

Description

Path 7

Description

Specifications

Dimensions

Ordering Info

Downloads

Description

Design Features

  • Available in 1-, 2- & 4-axis configurations
  • Cost-effective, high-performance design
  • AC & DC motor supply options
  • Compact design minimizes panel space for multi-axis systems

Key Applications

The XA4 is a part of the user-friendly Automation1 motion control platform, which includes the following:

Precision Motion, Unlocked.

The XA4 delivers better motion control to more machine builders and automation system developers. The efficient XA4 design is a perfect fit for contoured multi-axis motion control and point-to-point applications. Contoured applications including laser cutting, laser welding and precision dispensing are all possible with the XA4. Features such as Autofocus and velocity or torque control make the XA4 an ideal solution for fast point-to-point motion followed by placement and/or picking applications. Torque and force control also make XA4 a great candidate for dynamic material testing systems.

Optimal Performance. Easy to Achieve.

The powerful Automation1-iSMC motion controller empowers the XA4 with single- and multi-axis motion trajectories, coordinated and calibrated motion, gantry control and all the power of the AeroScript real-time programming language. Integrate the XA4 into a larger control structure using the powerful Automation1 APIs - part of the Automation1-MDK motion development kit. Not big on programming?  No problem. Simply build a custom user interface with the Automation1 MachineApps HMI Builder for Windows PCs.

The Automation1 controller supports RS-274 G-code natively and allows extra large programs (including points files) to be streamed to the controller using the APIs. Whether you have a simple sub-millisecond process or something that goes on for days, the XA4 and Automation1 can meet your application needs.

Step Into the World of Precision.

Are you struggling with general automation solutions? Step into the world of precision motion with the XA4 from Aerotech. PLC-based motion can’t compare to our industry-leading Automation1 control platform - and it is more accessible than you think.

Standard features include  safe torque off (STO), a data array with more than 16 MB of memory, dedicated home and end-of-travel limit inputs and an enhanced current sense device. The XA4 accepts square-wave and absolute encoder feedback signals. With the optional encoder multiplier feature, you can multiply sine-wave encoders by up to 4,096.

The XA4 is more than a motion control device -- it also includes many process control features.  Add Part-Speed PSO to trigger a process tool like an industrial laser or camera based on your vector programmed velocity. A 24-volt, one amp brake output is included. The device is CE approved, NRTL safety certified and EU 2015/863 RoHS 3 directive certified. The power amplifier bandwidth is software selectable.

Automation1 XA4 General Specifications

Category
Single-axis (-AX1)
Two-axis (-AX2)
Four-axis (-AX4)
Number of Axes 1 2 4
Motor Style Brush, brushless, voice coil, stepper(1) Brush, brushless, voice coil, stepper(1) Brush, brushless, voice coil, stepper(1)
Motor Supply - AC Single-phase 0-240 VAC; 50/60 Hz Single-phase 0-240 VAC; 50/60 Hz Single-phase 0-240 VAC; 50/60 Hz
Motor Supply - DC Not available on -AX1 15-100 VDC 15-100 VDC
Control Supply 24 VDC 24 VDC 24 VDC
Bus Voltage - AC(2) 0-340 VDC 0-340 VDC 0-340 VDC
Bus Voltage - DC(2) Not available on -AX1 15-100 VDC 15-100 VDC
Peak Output Current (1 sec)(3)(4) -10: 10 Apk
-20: 20 Apk , Only available on -AC option		 -10: 10 Apk
-20: 20 Apk , Only available on -AC option		 -10: 10 Apk
-20: 20 Apk , Only available on -AC option
Continuous Output Current(3)(5) -10: 5 Apk (-AX1 and -AX2 options); 4 Apk (-AX4 option);


-20: 10 Apk (-AX1 option); 5 Apk (-AX2 option); 4 Apk (-AX4 option) , Only available on -AC option		 -10: 5 Apk (-AX1 and -AX2 options); 4 Apk (-AX4 option);


-20: 10 Apk (-AX1 option); 5 Apk (-AX2 option); 4 Apk (-AX4 option) , Only available on -AC option		 -10: 5 Apk (-AX1 and -AX2 options); 4 Apk (-AX4 option);


-20: 10 Apk (-AX1 option); 5 Apk (-AX2 option); 4 Apk (-AX4 option) , Only available on -AC option
Position Synchronized Output (PSO) Standard
• No PSO Support




Optional:
• Three-axis part-speed PSO. (Includes One-axis PSO)		 Standard
• No PSO Support




Optional:
• Three-axis part-speed PSO. (Includes One-axis PSO)		 Standard
• No PSO Support




Optional:
• Three-axis part-speed PSO. (Includes One-axis PSO)
25-Pin Axis Connector High-speed differential inputs (encoder sin, cos and marker)

CW and CCW limits

Hall effect sensor inputs (A, B and C)

Analog motor temperature input (accepts digital)

Brake output		 High-speed differential inputs (encoder sin, cos and marker)

CW and CCW limits

Hall effect sensor inputs (A, B and C)

Analog motor temperature input (accepts digital)

Brake output		 High-speed differential inputs (encoder sin, cos and marker)

CW and CCW limits

Hall effect sensor inputs (A, B and C)

Analog motor temperature input (accepts digital)

Brake output
Multiplier Options • MX0 option

Primary encoder (axis 1): 40 million counts per second square-wave input		 • MX0 option

Primary encoder (axes 1 and 2): 40 million counts per second square-wave input




• MX1 option

Primary encoder (axes 1 and 2): 450 kHz sine-wave input, encoder multiplier up to 4,096		 • MX0 option

Primary encoder (axes 1 and 2): 40 million counts per second square-wave input




• MX1 option

Primary encoder (axes 1 and 2): 450 kHz sine-wave input, encoder multiplier up to 4,096
I/O Expansion Board (-EB1) - 16x digital inputs, optically isolated


- 16x digital outputs, optically isolated


- 2x analog inputs, 16-bit, differential, ±10 V


- 2x analog outputs, 16-bit, single-ended, ±10 V


- Auxiliary Encoder: 40 million counts-per-second square-wave input		 - 16x digital inputs, optically isolated


- 16x digital outputs, optically isolated


- 2x analog inputs, 16-bit, differential, ±10 V


- 2x analog outputs, 16-bit, single-ended, ±10 V


- Auxiliary Encoder: 40 million counts-per-second square-wave input		 - 16x digital inputs, optically isolated


- 16x digital outputs, optically isolated


- 2x analog inputs, 16-bit, differential, ±10 V


- 2x analog outputs, 16-bit, single-ended, ±10 V


- Auxiliary Encoder: 40 million counts-per-second square-wave input
I/O Expansion Board (-EB2) - 32x digital inputs, optically isolated


- 32x digital outputs, optically isolated


- 3x analog inputs, 16-bit, differential, ±10 V


- 6x analog outputs, 16-bit, single-ended, ±10 V


- Auxiliary Encoder: 40 million counts-per-second square-wave input, 10 MHz maximum		 - 32x digital inputs, optically isolated


- 32x digital outputs, optically isolated


- 3x analog inputs, 16-bit, differential, ±10 V


- 6x analog outputs, 16-bit, single-ended, ±10 V


- Auxiliary Encoder: 40 million counts-per-second square-wave input, 10 MHz maximum		 - 32x digital inputs, optically isolated


- 32x digital outputs, optically isolated


- 3x analog inputs, 16-bit, differential, ±10 V


- 6x analog outputs, 16-bit, single-ended, ±10 V


- Auxiliary Encoder: 40 million counts-per-second square-wave input, 10 MHz maximum
Drive Array Memory 16.8 MB (4,194,304 32-bit elements) 16.8 MB (4,194,304 32-bit elements) 67.1 MB (16,777,216 32-bit elements)
High Speed Data Capture Yes (50 ns latency) Yes (50 ns latency) Yes (50 ns latency)
Safe Torque Off (STO) Yes, SIL3/PLe/Cat 4 (certification pending) Yes, SIL3/PLe/Cat 4 (certification pending) Yes, SIL3/PLe/Cat 4 (certification pending)
HyperWire Connections 2x HyperWire small form-factor pluggable (SFP) ports 2x HyperWire small form-factor pluggable (SFP) ports 2x HyperWire small form-factor pluggable (SFP) ports
Automatic Brake Control Standard (24 V at 1.0 A), axis 1 Standard (24 V at 1.0 A), axis 1 Standard (24 V at 1.0 A), axes 1 and 2
Absolute Encoder BiSS C Unidirectional; EnDat 2.1; EnDat 2.2; SSI BiSS C Unidirectional; EnDat 2.1; EnDat 2.2; SSI BiSS C Unidirectional; EnDat 2.1; EnDat 2.2; SSI
Current Loop Update Rate 20 kHz 20 kHz 20 kHz
Servo Loop Update Rate 10 kHz 10 kHz 10 kHz
Operating Temperature 0 to 40 °C 0 to 40 °C 0 to 40 °C
Storage Temperature -30 to 85 °C -30 to 85 °C -30 to 85 °C
Weight 1 kg (2.2 lb) 1 kg (2.2 lb) 1.5 kg (3.3 lb)
Compliance CE approved, NRTL safety certification, EU 2015/863 RoHS 3 directive CE approved, NRTL safety certification, EU 2015/863 RoHS 3 directive CE approved, NRTL safety certification, EU 2015/863 RoHS 3 directive

Dimensions

AUTOMATION1-XA4-AC-AX1



AUTOMATION1-XA4-AC-AX2



AUTOMATION1-XA4-AC-AX4



Ordering Information

Automation1-XA4

Option Description
Automation1-XA4 1- 2- or 4-Axis HyperWire multi-Axis PWM servo drive

Axes

Option Description
-AX1 Single-axis servo motor drive
-AX2 Two-axis servo motor drive
-AX4 Four-axis servo motor drive
Note:
  1. 1. The -AX1 option is only available with the -AC Motor supply voltage option.

Motor Supply Voltage

Option Description
-AC 240 VAC rated motor supply
-DC 100 VDC rated motor supply
Note:
  1. 1. The -DC option is only available with the Two-axis (-AX2) and Four-axis (-AX4) options.

Current

Option Description
-10 10 A peak, 5 A cont. current (-AX1, -AX2); 10 A peak, 4 A cont. current (-AX4)
-20 20 A peak, 10 A cont. current (-AX1); 20 A peak, 5 A cont. current (-AX2); 20 A peak, 4 A cont. current (-AX4)
Notes:
  1. The -20 Peak Current option is only available with the -AC Motor supply voltage option.
  2. When configured with -AX2 or AX4, each axis pair (1 & 2 and 3 & 4) is configured with the same current ratings.

Multiplier

Option Description
-MX0 No encoder multiplier (default)
-MX1 x4096 encoder multiplier
Note:
  1. 1. MX1 multiplier is only available when configured with the -AX2 or -AX4, and applies to each pair of axes (1 & 2 and 3 & 4).

Expansion Board

Option Description
-EB0 No expansion board
-EB1 Standard density I/O expansion board
-EB2 High density I/O expansion board

PSO

Option Description
-PSO0 No PSO
-PSO6 Three-axis Part-Speed PSO
Automation XA4 Data Sheet Automation1 XA4 Hardware Manual Automation1-XA4-AX1-AX2 CAD Download Automation1-XA4-AX4 CAD Download
