Automation1 iXC2e Enhanced, Compact PWM Servo Drive with Motion Controller
Our high-performance, compact Automation1 iXC2e PWM servo motor drive with integrated motion controller is two solutions in one: it’s capable of complete machine control and provides sub-nanometer levels of position control to linear or rotary servo motors, voice coil motors, stepper motors or any precision linear or rotary stage driven by one of these motor types. The silicon carbide (SiC) power amplifiers feature ultra-precise PWM switching, enabling excellent motor control performance.
The powerful Automation1-iSMC motion controller is loaded directly onto the same hardware that runs the drive, which in turn manages the trajectory of up to 12 axes of control over the HyperWire motion bus.
Interested in buying online? Learn more here.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications

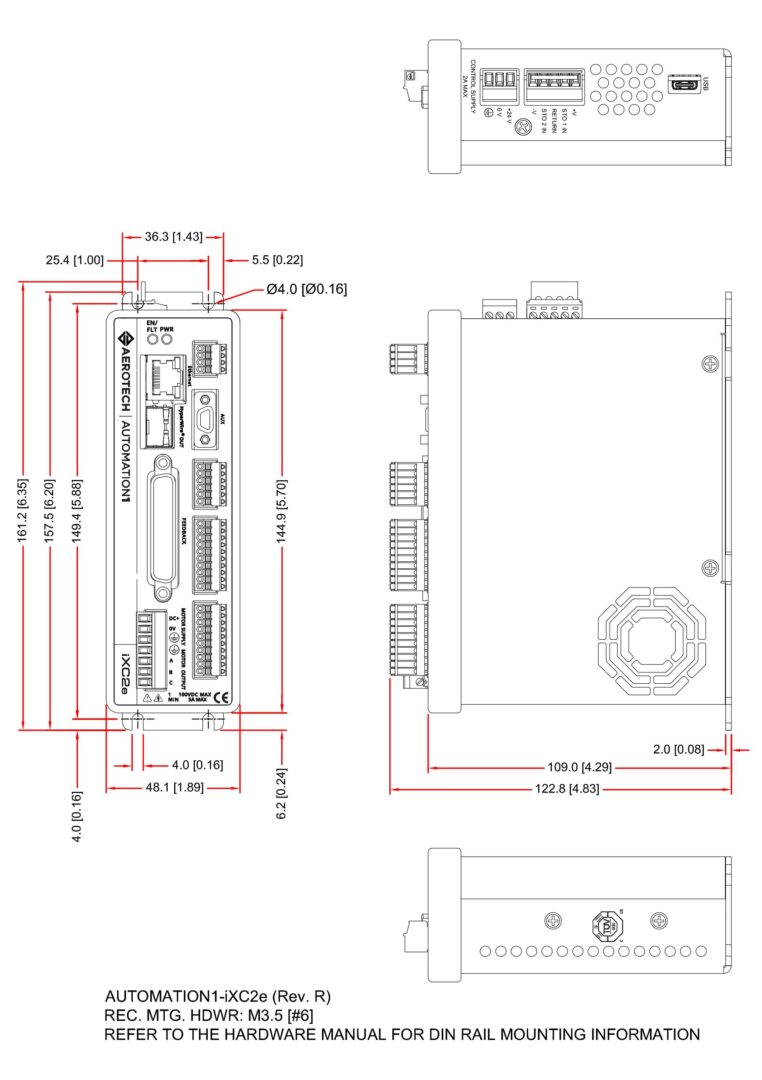

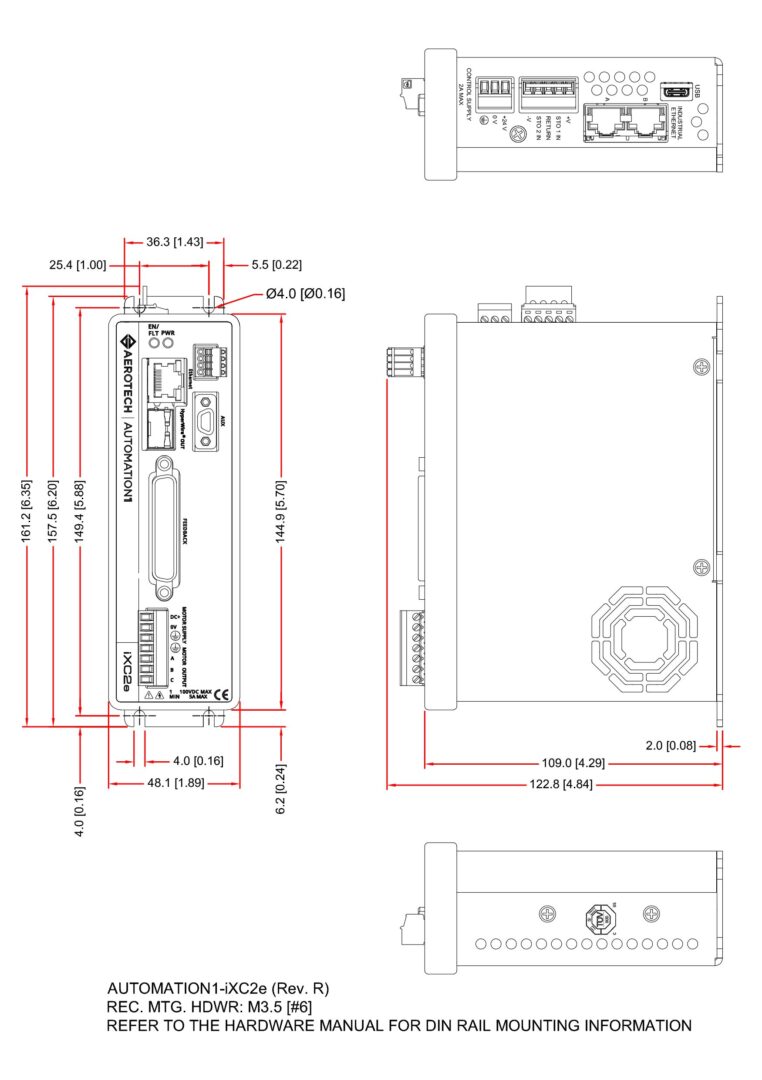

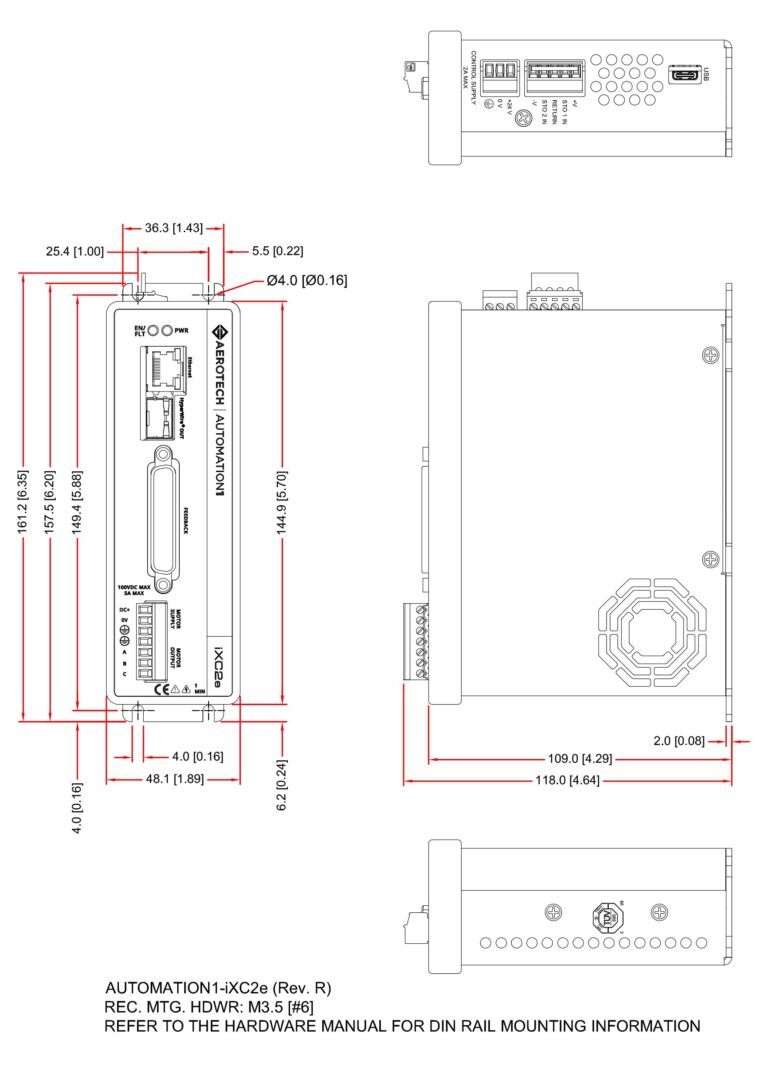

Dimensions
Ordering Info
Downloads
Description
Design Features
- Unlocks the full motion control power of our Automation1-iSMC intelligent software-based motion controller
- Features complete configuration & performance capability of the XC2e PWM servo drive
- Includes local drive with 100 VDC bus motor power & up to 10 amps peak output
- Eliminates the PC from your control scheme
- Allows for up to 12 axes of control when more Automation1 drives are connected over the HyperWire fiber-optic bus
- Includes PSO, the ultimate in position-based control for industrial lasers, cameras & more
- Includes Safe Torque Off (STO) functional safety
Automation1
The iXC2e is a part of the user-friendly Automation1 motion control platform, which includes the following:
Control Your Full Machine
The Automation1-iSMC motion controller deployed to an iXC2e drive can controls up to twelve axes of motion over the Automation1 HyperWire® communication bus. You can truly control a full machine or system with this device. All axes are tightly coordinated with other axes on the network to deliver contoured motion and a single, simple machine control architecture.
Extend Your I/O
Configure the Automation1-iSMC with the appropriate industrial ethernet options and connect additional third-party devices, completing your control architecture.
All The Benefits of the High-Performance XC2e
The iXC2e experiences absolutely zero servo motor performance hit, even when running the full motion controller. Data acquisition speeds and volume remain the same. The power amplifier circuit still operates at 100 VDC max and 10 A peak current capability.
Process control features such as additional I/O and Aerotech’s ultrafast, low latency Position Synchronized Output (PSO) are still available options. This means processes built around the iXC2e have better motion and process performance - all with out the PC.
Feature-Forward Design
Standard features for an iXC2e drive include STO, a data array consisting of more than 16 million 32-bit elements, dedicated home and end-of-travel limit inputs, and an enhanced current sense device. Standard encoder support includes square-wave and absolute encoders.
Add I/O to your iXC2e with an expansion board containing analog and digital I/O, an added encoder input, and dedicated PSO.
Upgrade your process control capabilities with one of many multi-axis PSO options. Improve the resolution of amplified sine-wave encoders by adding a feedback multiplier, including dual loop multiplier support.
Effortless Feedback
Aerotech’s standard feedback connector is a 25-pin DB-25 connector, which enables simple, single-cable connectivity for all feedback signals from a servo motor and precision stage combination. The iXC2e is offered with or without an integral encoder multiplier, which enables design flexibility based on the resolution required by your application. Absolute encoder support is a standard feature.
Ready to Connect
HyperWire makes it simple to connect the iXC2e in a multi-axis configuration with other Automation1 drive hardware. A 24-volt one amp brake output is included. The device is CE approved, NRTL safety certified and EU 2015/863 RoHS 3 directive certified. The power amplifier bandwidth is software selectable and up to 95 percent efficient.
Capture Process Data
The iXC2e collects multiple signals and data items that provide valuable diagnostic and performance information. When coupled with the two Gbps HyperWire bandwidth, you can pull the required data back to the iSMC for easy access via the Automation1 Studio application or the .NET application programming interface (API). Unlike other platforms, you never have to lower your trajectory rates to acquire this valuable data.
From bus voltage to current feedback to position error during part processing, the Automation1 iXC2e creates a constant stream of data. You can use this data to monitor your drive’s performance.
Excellent In-Position Performance
Thanks to advanced control techniques and feedback signal processing, the iXC2e can control stage in-performance to less than 0.18 nanometers rms.
See how Automation1 Servo Drives Improve In-Position Stability.
Specification |
Description |
Motion Controller (1) | Aerotech’s Automation1-iSMC Intelligent Software-Based Motion Controller (version 2.2 and above) |
Maximum Axes of Control(1) | Up to 12 axes |
I/O Points(1) | See “I/O Expansion Board (-EB1)” specifications below. Note: Controller can control I/O from connected devices. |
Programming Language(1) | AeroScript, RS-274 G-code |
APIs(1) | .NET (cross-platform Linux support) C (cross-platform Linux support) Python (cross-platform Linux support) EPICS (cross-platform Linux support) see EPICS.anl.gov |
Position Modes | Absolute, incremental, dynamic trajectory correction |
Motion Types(1) | Linear motion Clockwise & counterclockwise Jogging Homing Rapid Freerun Many more |
Acceleration Profiles | Linear (time & rate based) Sine (time & rate based) S-curve (time & rate based) |
Velocity Profiling(1) | Yes |
Safe Zones(1) | Yes |
Advanced Features(1) | Corner rounding Tool normalcy control Cutter compensation Programmable fixture offsets(2) Rotation, mirroring & translation transformations Part profile scaling Polar & cylindrical transformations(2) Orthogonality correction Electronic gearing EasyTune® & classical tuning Backlash compensation Spindle motion High-speed registration Multi-dimensional error mapping |
Access Control | No |
Controller File System | Yes (5 GB) |
Supported HyperWire Drives | Automation1-XC6e(3)(4) Automation1-XC4e(3)(4) Automation1-XC2e(3)(4) Automation1-XC4(3)(4) Automation1-XC2(3)(4) Automation1-XR3(3) Automation1-XL5e(3)(4) Automation1-XL2e(3)(4) Automation1-SI4(3) Automation1-XI4(3) |
Industrial Ethernet Communication | EtherCAT (Optional) |
Communication/Configuration Connection |
Ethernet USB |
Category |
Specification |
Motor Style | Brush, brushless, voice coil, stepper(1) |
Control Supply | 24 VDC |
Motor Supply | 15-100 VDC |
Bus Voltage(2) | 15-100 VDC |
PWM Frequency | 20 kHz |
Peak Output Current (1 sec)(3) | 10 Apk |
Continuous Output Current(3) | 5 A |
Position Synchronized Output (PSO) |
Standard: One-axis PSO (includes one-axis Part-Speed PSO)* Optional: Two-axis PSO (includes two-axis Part-Speed PSO)* Two-axis Part-Speed PSO only* Three-axis Part-Speed PSO only* *Requires adding an expansion board to the drive to output PSO pulses via a physical connection. |
25-Pin Motor Feedback Connector | High-speed differential inputs (encoder sin, cos & marker) CW and CCW limits Hall effect sensor inputs (A, B & C) Analog motor temperature input (accepts digital) Brake output |
Multiplier Options | MX0 option: Primary encoder: 40 million counts per second square-wave input Auxiliary encoder: 40 million counts per second square-wave input MX2 option: Primary encoder: 2 MHz/450 kHz (bandwidth selectable) sine-wave input, encoder multiplier up to 65,536 Auxiliary encoder: 40 million counts per second square-wave input MX3 option: Primary encoder: 2 MHz/450 kHz (bandwidth selectable) sine-wave input, encoder multiplier up to 65,536 Auxiliary encoder: 450 kHz sine-wave input, encoder multiplier up to x16,384* *Encoders multiplied with this input cannot be echoed out |
I/O Expansion Board (-EB1) | PSO output connector with up to 12.5 MHz output rate Auxiliary Encoder Port 1x 16-bit differential, ±10 V analog input 1x 16-bit single-ended, ±10 V analog output 8x optically isolated digital inputs 8x optically isolated digital outputs |
I/O Expansion Board (-EB2) | PSO output connector with up to 12.5 MHz output rate Auxiliary Encoder Port 2x Industrial Ethernet Ports |
Drive Array Memory | 67.1 MB (16,777,216 32-bit elements) |
High Speed Data Capture | Yes (50 ns latency) |
Safe Torque Off (STO) | Yes (SIL3/PLe/Cat 4) |
HyperWire Connections | 1x HyperWire small form-factor pluggable (SFP) port |
Automatic Brake Control | Standard (24 V at 0.5 A) |
Absolute Encoder | Renishaw Resolute BiSS; EnDat 2.1; EnDat 2.2, and SSI |
Current Loop Update Rate | 20 kHz |
Servo Loop Update Rate | 20 kHz |
Power Amplifier Bandwidth | 2500 Hz maximum (software selectable) |
Power Amplifier Efficiency | 85-95%(4) |
Minimum Load Inductance | 0.1 mH |
Operating Temperature | 0 to 40 °C |
Storage Temperature | -30 to 85 °C |
Weight | 0.54 kg (1.20 lb.) |
Compliance | CE approved, NRTL safety certification, EU 2015/863 RoHS 3 directive |
Ordering Information
Automation1 iXC2e Ordering Options
Automation1 iXC2e
Option | Description |
Automation1 iXC2e | Automation1 iXC2e - Enhanced, Compact PWM Servo Drive with Motion Controller |
Peak Current
Option | Description |
-10 | 10 A peak, 5 A cont. current (default) |
Expansion Board
Option | Description |
-EB0 | No expansion board (default) |
-EB1 | Expansion board with analog/digital I/O |
-EB2 | Expansion board with industrial Ethernet ports |
Multiplier
Option | Description |
-MX0 | No encoder multiplier (default) |
-MX2 | x65536 multiplier (primary), no multiplier (auxiliary) |
-MX3 | x65536 multiplier (primary), x16384 multiplier (auxiliary) |
PSO(1)
Option | Description |
-PSO1 | One-axis PSO (includes one-axis Part-Speed PSO) (default) |
-PSO2 | Two-axis PSO (includes three-axis Part-Speed PSO) |
-PSO5 | Two-axis Part-Speed PSO |
-PSO6 | Three-axis Part-Speed PSO |
- 1. PSO functionality is included in the base iXC2e. The -EB1 board is required to use PSO logic to generate an output signal.
Automation1 PS2 Din Rail Power Supply Ordering Options
Automation1 PS2
Option | Description |
Automation1 PS2 | Automation1 PS2 - Din-rail mounted power supply for 1 to 4 compact servo drives |
Drive Type (Required)
Option | Description |
-D1 | PS2 for XC2, XC2e drives & iXC2e, iXC2 drive-based controllers |
-D2 | PS2 for XL2e drives & iXL2e drive-based controllers |
Power Output (Required)
Option | Description |
-P1 | 240 watts at 24 VDC |
-P2 | 240 watts at 48 VDC |
-P3 | 480 watts at 48 VDC |
-P4 | 480 watts at 96 VDC |
-P5 | 240 watts at +/-12 VDC (10A) |
-P6 | 240 watts at +/-24 VDC (5A) |
-P7 | 480 watts at +/-48 VDC (5A) |
Number of Axes (Required)
Option | Description |
-AX01 | 1 axis of wiring |
-AX02 | 2 axis of wiring |
-AX03 | 3 axis of wiring |
-AX04 | 4 axis of wiring |
