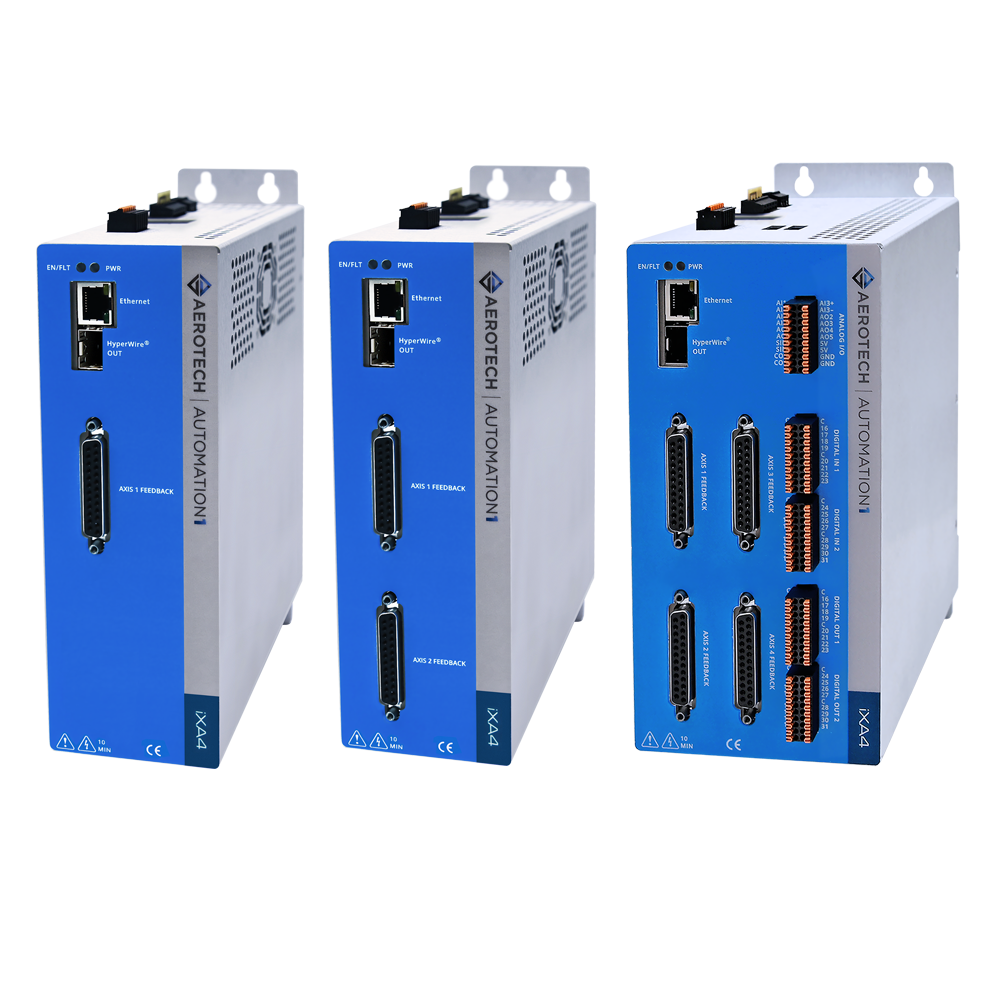

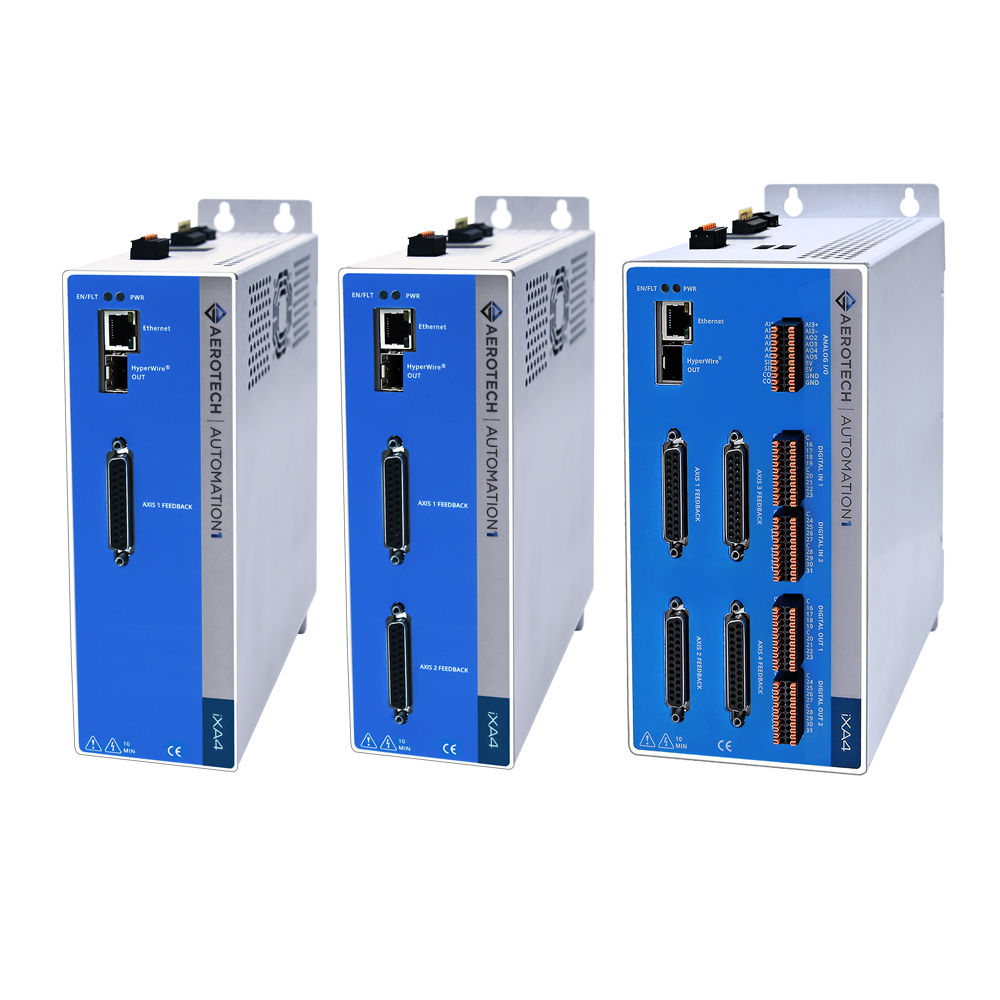

Automation1 iXA4 1- 2- or 4-Axis PWM Servo Drive with Motion Controller
Take full control of your industrial and research systems with the iXA4 PWM Servo Drive with HyperWire Motion Controller. The iXA4 is the most complete, simplest to deploy Automation1 hardware solution for servo motor drive motion systems. You’ll build more economical, more compact motion systems faster using this streamlined multi-axis hardware design with embedded controller.
The iXA4’s brings Automation1 precision to multiple axes of motion in the same machine footprint — without needing an industrial PC. Control 12 HyperWire® axes of motion and run up to nine user tasks on the embedded Automation1 controller. As a drive, the iXA4 supports multiple feedback device types and includes on-board memory. The amplifiers control brushless AC, brush DC, voice coil and stepper motor types at up to 340 VDC operating voltage and 20 A peak current capability.
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Description
Specifications
Dimensions
Ordering Info
Downloads
Description
Design Features
- Full iSMC motion controller & drive in one package

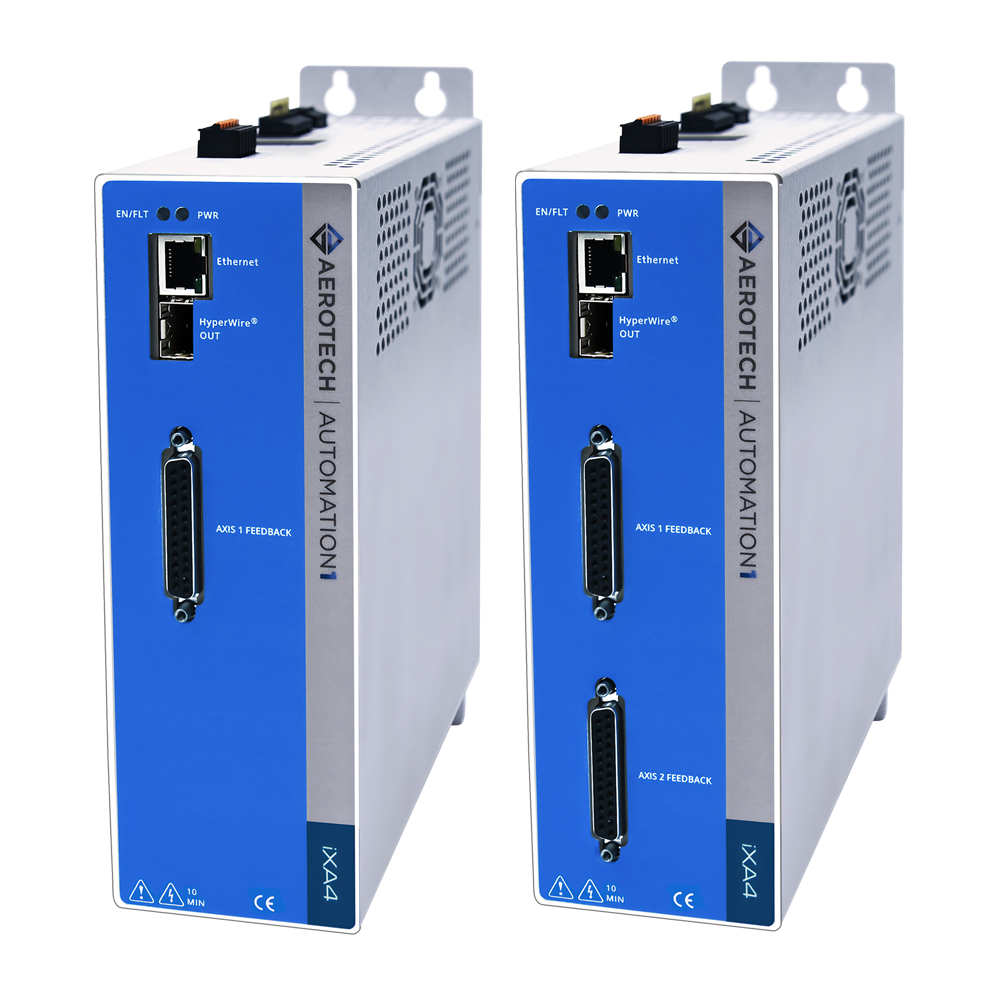

- Available in 1-, 2- & 4-axis configurations
- Cost-effective, high-performance design
- AC & DC motor supply options
- Compact design minimizes panel space for multi-axis systems
Key Applications
The iXA4 is a part of the user-friendly Automation1 motion control platform, which includes the following:
Better Motion. Better Control.
The iXA4 delivers better motion control to more machine builders and automation system developers. Its efficient design is a perfect fit for contoured multi-axis motion control and point-to-point applications. The embedded iSMC motion controller can control up to 12 axes of motion, including onboard axes and those extended over the HyperWire motion bus.
Contoured applications such as laser cutting, laser welding and precision dispensing are all possible with the iXA4. The iXA4 includes features such as Autofocus and velocity or torque control, making it an ideal solution for fast point-to-point motion followed by placement and/or picking applications. Torque and force control also make iXA4 a great candidate for dynamic material testing systems.
Simple to Integrate
The powerful Automation1-iSMC motion controller brings serious application integration power to the iXA4. Use the powerful Automation1 APIs (provided with the Automation1-MDK motion development kit) to integrate the controller into your own custom application or avoid coding and quickly develop your own custom user interface with the Automation1 MachineApps HMI Builder for Windows PCs. The Automation1 controller supports RS-274 G-code natively and allows extra large programs (including points files) to be streamed to the controller using the APIs. Whether you have a simple sub-millisecond process or something that goes on for days, the iXA4 and Automation1 can meet your application needs.
Control the World of Precision
Have you been struggling with general automation solutions? Step into the world of precision motion with the iXA4. PLC-based motion can’t compare to our industry-leading Automation1 control platform - and it is more accessible than you think.
The iXA4’s standard features include a 5GB controller file system, Modbus industrial ethernet connectivity, safe torque off (STO), a data array with more than 16 MB of memory, dedicated home and end-of-travel limit inputs and an enhanced current sense device. The iXA4 accepts square-wave and absolute encoder feedback signals. With the optional encoder multiplier feature, you can multiply sine-wave encoders by up to 4,096.
The iXA4 also includes many process control features such as Part-Speed Position Synchronized Output (PSO) to trigger a process tool like an industrial laser or camera based on your vector programmed velocity. A 24-volt, one amp brake output is included. The device is CE approved, NRTL safety certified and EU 2015/863 RoHS 3 directive certified. The power amplifier bandwidth is software selectable.
Specification |
Single-axis (-AX1) |
Two-axis (-AX2) |
Four-axis (-AX4) |
| Motion Controller | Aerotech’s Automation1-iSMC Intelligent Software-Based Motion Controller iXA4 support: Version 2.7 and above: -AC, -AX1, -AX2, -EB); Version 2.8.1 and above: -DC, -AX4, -EB1, -EB2 |
Aerotech’s Automation1-iSMC Intelligent Software-Based Motion Controller iXA4 support: Version 2.7 and above: -AC, -AX1, -AX2, -EB); Version 2.8.1 and above: -DC, -AX4, -EB1, -EB2 |
Aerotech’s Automation1-iSMC Intelligent Software-Based Motion Controller iXA4 support: Version 2.7 and above: -AC, -AX1, -AX2, -EB); Version 2.8.1 and above: -DC, -AX4, -EB1, -EB2 |
| Number of Axes | 1 | 2 | 4 |
| Motor Style | Brush, brushless, voice coil, stepper(1) | Brush, brushless, voice coil, stepper(1) | Brush, brushless, voice coil, stepper(1) |
| Motor Supply - AC | Single-phase 0-240 VAC; 50/60 Hz | Single-phase 0-240 VAC; 50/60 Hz | Single-phase 0-240 VAC; 50/60 Hz |
| Motor Supply - DC | Not available on -AX1 | 15-100 VDC | 15-100 VDC |
| Control Supply | 24 VDC | 24 VDC | 24 VDC |
| Bus Voltage - AC (2) | 0-340 VDC | 0-340 VDC | 0-340 VDC |
| Bus Voltage - DC (2) | Not available on -AX1 | 15-100 VDC | 15-100 VDC |
| Peak Output Current (1 sec)(3)(4) | -10: 10 Apk -20: 20 Apk , Only available on -AC option |
-10: 10 Apk -20: 20 Apk , Only available on -AC option |
-10: 10 Apk -20: 20 Apk , Only available on -AC option |
| Continuous Output Current(3)(5) | -10: 5 Apk (-AX1 and -AX2 options); 4 Apk (-AX4 option); -20: 10 Apk (-AX1 option); 5 Apk (-AX2 option); 4 Apk (-AX4 option) , Only available on -AC option |
-10: 5 Apk (-AX1 and -AX2 options); 4 Apk (-AX4 option); -20: 10 Apk (-AX1 option); 5 Apk (-AX2 option); 4 Apk (-AX4 option) , Only available on -AC option |
-10: 5 Apk (-AX1 and -AX2 options); 4 Apk (-AX4 option); -20: 10 Apk (-AX1 option); 5 Apk (-AX2 option); 4 Apk (-AX4 option) , Only available on -AC option |
| Position Synchronized Output (PSO) | Standard • No PSO Support Optional: • Three-axis part-speed PSO. (Includes One-axis PSO) |
Standard • No PSO Support Optional: • Three-axis part-speed PSO. (Includes One-axis PSO) |
Standard • No PSO Support Optional: • Three-axis part-speed PSO. (Includes One-axis PSO) |
| 25-Pin Motor Feedback Connector | - High-speed differential inputs (encoder sin, cos and marker) - CW and CCW limits - Hall effect sensor inputs (A, B, and C) - Analog motor temperature input (accepts digital) - Brake output - 1x 16-bit differential ±10 V analog input |
- High-speed differential inputs (encoder sin, cos and marker) - CW and CCW limits - Hall effect sensor inputs (A, B, and C) - Analog motor temperature input (accepts digital) - Brake output - 1x 16-bit differential ±10 V analog input |
- High-speed differential inputs (encoder sin, cos and marker) - CW and CCW limits - Hall effect sensor inputs (A, B, and C) - Analog motor temperature input (accepts digital) - Brake output - 1x 16-bit differential ±10 V analog input |
| Multiplier Options | • MX0 option Primary encoder (axis 1): 40 million counts per second square-wave input |
• MX0 option Primary encoder (axes 1 and 2): 40 million counts per second square-wave input • MX1 option Primary encoder (axes 1 and 2): 450 kHz sine-wave input, encoder multiplier up to 4,096 |
• MX0 option Primary encoder (axes 1 and 2): 40 million counts per second square-wave input • MX1 option Primary encoder (axes 1 and 2): 450 kHz sine-wave input, encoder multiplier up to 4,096 |
| I/O Expansion Board (-EB1) | - 16x digital inputs, optically isolated - 16x digital outputs, optically isolated - 2x analog inputs, 16-bit, differential, ±10 V - 2x analog outputs, 16-bit, single-ended, ±10 V - Auxiliary Encoder: 40 million counts-per-second square-wave input |
- 16x digital inputs, optically isolated - 16x digital outputs, optically isolated - 2x analog inputs, 16-bit, differential, ±10 V - 2x analog outputs, 16-bit, single-ended, ±10 V - Auxiliary Encoder: 40 million counts-per-second square-wave input |
- 16x digital inputs, optically isolated - 16x digital outputs, optically isolated - 2x analog inputs, 16-bit, differential, ±10 V - 2x analog outputs, 16-bit, single-ended, ±10 V - Auxiliary Encoder: 40 million counts-per-second square-wave input |
| I/O Expansion Board (-EB2) | - 32x digital inputs, optically isolated - 32x digital outputs, optically isolated - 3x analog inputs, 16-bit, differential, ±10 V - 6x analog outputs, 16-bit, single-ended, ±10 V - Auxiliary Encoder: 40 million counts-per-second square-wave input, 10 MHz maximum |
- 32x digital inputs, optically isolated - 32x digital outputs, optically isolated - 3x analog inputs, 16-bit, differential, ±10 V - 6x analog outputs, 16-bit, single-ended, ±10 V - Auxiliary Encoder: 40 million counts-per-second square-wave input, 10 MHz maximum |
- 32x digital inputs, optically isolated - 32x digital outputs, optically isolated - 3x analog inputs, 16-bit, differential, ±10 V - 6x analog outputs, 16-bit, single-ended, ±10 V - Auxiliary Encoder: 40 million counts-per-second square-wave input, 10 MHz maximum |
| Drive Array Memory | 16.8 MB (4,194,304 32-bit elements) | 16.8 MB (4,194,304 32-bit elements) | 67.1 MB (16,777,216 32-bit elements) |
| High Speed Data Capture | Yes (50 ns latency) | Yes (50 ns latency) | Yes (50 ns latency) |
| Safe Torque Off (STO) | Yes, SIL3/PLe/Cat 4 (certification pending) | Yes, SIL3/PLe/Cat 4 (certification pending) | Yes, SIL3/PLe/Cat 4 (certification pending) |
| HyperWire Connections | 1x HyperWire small form-factor pluggable (SFP) ports | 1x HyperWire small form-factor pluggable (SFP) ports | 1x HyperWire small form-factor pluggable (SFP) ports |
| Automatic Brake Control | Standard (24 V at 1.0 A), axis 1 | Standard (24 V at 1.0 A), axes 1 and 2 | Standard (24 V at 1.0 A), axes 1, 2, 3 and 4 |
| Absolute Encoder | BiSS C Unidirectional; EnDat 2.1; EnDat 2.2; SSI | BiSS C Unidirectional; EnDat 2.1; EnDat 2.2; SSI | BiSS C Unidirectional; EnDat 2.1; EnDat 2.2; SSI |
| Current Loop Update Rate | 20 kHz | 20 kHz | 20 kHz |
| Servo Loop Update Rate | 10 kHz | 10 kHz | 10 kHz |
| Operating Temperature | 0 to 40 °C | 0 to 40 °C | 0 to 40 °C |
| Storage Temperature | -30 to 85 °C | -30 to 85 °C | -30 to 85 °C |
| Weight | 1 kg (2.2 lb) | 1 kg (2.2 lb) | 1.5 kg (3.3 lb) |
| Compliance | CE approved, NRTL safety certification, EU 2015/863 RoHS 3 directive | CE approved, NRTL safety certification, EU 2015/863 RoHS 3 directive | CE approved, NRTL safety certification, EU 2015/863 RoHS 3 directive |
Dimensions
AUTOMATION1-iXA4-AC-AX1 WITH -IE1 OPTION
AUTOMATION1-iXA4-AC-AX1 WITH -IE1 OPTION
AUTOMATION1-iXA4-AC-AX2 WITH -IE1 OPTION
AUTOMATION1-iXA4-AC-AX4
Ordering Information
Automation1-iXA4
| Option | Description |
| Automation1-iXA4 | 1- 2- or 4- Axis HyperWire multi-axis PWM servo drive with HyperWire motion controller |
Axes
| Option | Description |
| -AX1 | Single-axis servo motor drive |

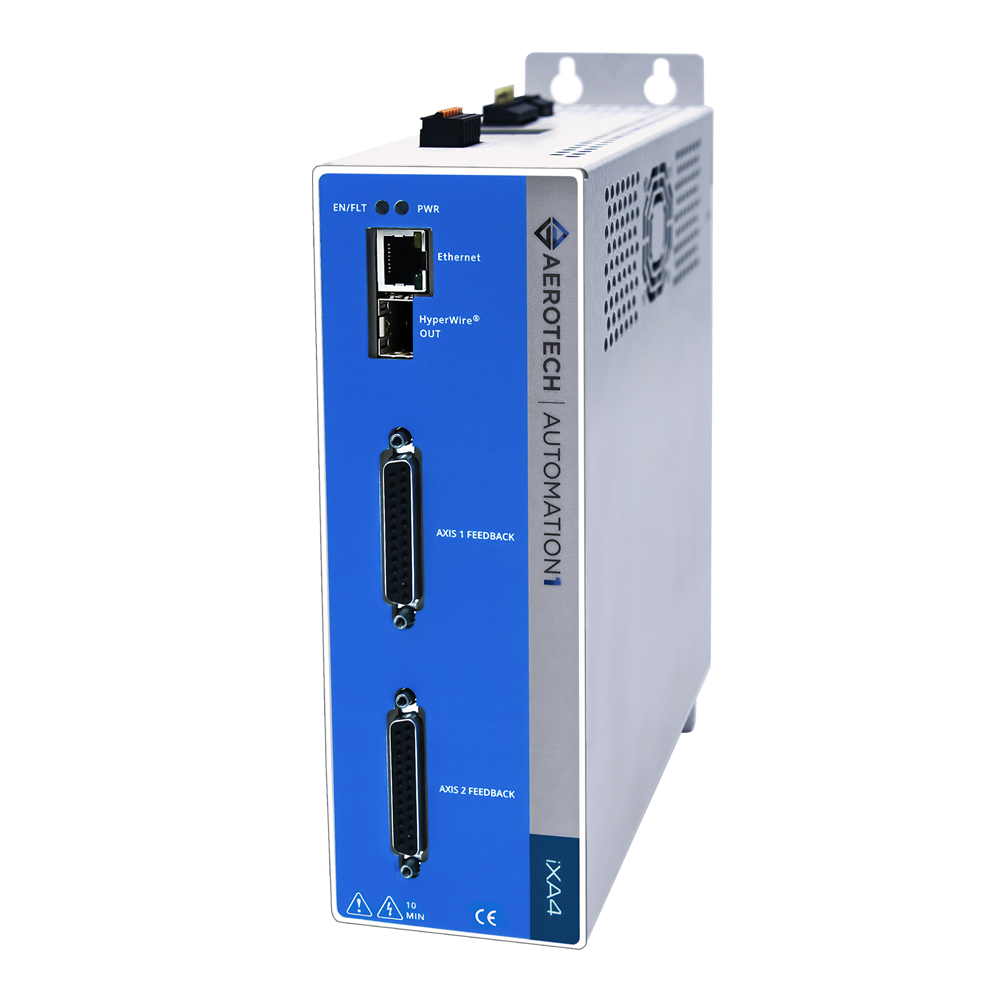

| -AX2 | Two-axis servo motor drive |
| -AX4 | Four-axis servo motor drive |
- 1. The -AX1 option is only available with the -AC Motor supply voltage option.
Motor Supply Voltage
| Option | Description |
| -AC | 240 VAC rated motor supply |
| -DC | 100 VDC rated motor supply |
- The -DC option is only available with the Two-axis (-AX2) and Four-axis (-AX4) options.
Current
| Option | Description |
| -10 | 10 A peak, 5 A cont. current (-AX1, -AX2); 10 A peak, 4 A cont. current (-AX4) |
| -20 | 20 A peak, 10 A cont. current (-AX1); 20 A peak, 5 A cont. current (-AX2); 20 A peak, 4 A cont. current (-AX4) |
- The -20 Peak Current option is only available with the -AC Motor supply voltage option.
- When configured with -AX2 or AX4, each axis pair (1 & 2 and 3 & 4) is configured with the same current ratings.
Multiplier
| Option | Description |
| -MX0 | No encoder multiplier (default) |
| -MX1 | x4096 encoder multiplier |
- 1. MX1 multiplier is only available when configured with the -AX2 or -AX4, and applies to each pair of axes (1 & 2 and 3 & 4).
Industrial Ethernet
| Option | Description |
| -IE0 | Does not include industrial Ethernet ports |
| -IE1 | Includes industrial Ethernet ports |
- 1. When configured with -AX2, industrial ethernet port option -IE1 must be selected.
Expansion Board
| Option | Description |
| -EB0 | No expansion board |
| -EB1 | Standard density I/O expansion board |
| -EB2 | High density I/O expansion board |
PSO
| Option | Description |
| -PSO0 | No PSO |
| -PSO6 | Three-axis Part-Speed PSO |
